How to Select the Best Paste Packaging Machine for Wholesale Distribution: A Step-by-Step Buyer's Guide

Selecting a paste packaging machine is more complicated than choosing a standard liquid filler. Pastes may be thick, sticky, stringy, shear-sensitive, temperature-dependent, or filled with solid particles. Products that appear similar in a container can behave very differently when they move through a hopper, pump, hose, and filling nozzle.

For wholesalers, this technical complexity creates both risk and opportunity. A poorly matched machine can cause inaccurate doses, dripping nozzles, contaminated seals, slow production, and frequent customer complaints. A carefully selected machine, however, can become a highly marketable solution for food processors, cosmetic manufacturers, household chemical producers, pharmaceutical companies, and contract packaging businesses.

This guide explains how to select a Paste Packaging Machine for wholesale distribution by evaluating the product, package, filling system, production capacity, cleaning requirements, and supplier support.

The Quick Answer: What Information Is Needed to Select a Paste Packaging Machine?

Before requesting a quotation, collect the following information from the end user:

1. Product name and application

2. Viscosity range at the actual filling temperature

3. Presence and maximum size of particles or fibers

4. Required filling volume and tolerance

5. Bag dimensions, style, and film structure

6. Target production output

7. Cleaning, hygiene, and changeover requirements

8. Available electrical power and compressed air

9. Upstream feeding and downstream handling requirements

10. Samples of the actual product and packaging film

The following table provides a practical selection overview.

A supplier cannot reliably select the correct configuration from the product name alone. “Sauce,” for example, could mean a smooth, free-flowing tomato sauce, a thick cheese sauce, or a chili sauce containing seeds and vegetable pieces.

Why Paste Is More Difficult to Package Than Free-Flowing Liquid

Water-like liquids flow readily under gravity and usually recover quickly after moving through a pipe. Pastes often behave differently because their apparent viscosity changes with temperature, pressure, and shear.

Many sauces, creams, gels, and cosmetic emulsions are non-Newtonian materials. Their viscosity may decrease while being pumped and then increase again after filling. Some products require a minimum pressure before they begin to move. Others continue stretching from the nozzle after the filling stroke, creating a string that can contaminate the seal area.

Important paste behaviors include:

• Shear thinning: The product becomes easier to pump as shear increases.

• Thixotropy: Viscosity decreases during mixing or pumping and recovers while the product rests.

• Yield stress: The paste does not flow until sufficient force is applied.

• Stringing: A strand forms between the nozzle and deposited product.

• Separation: Oil, water, and solids may separate when the product remains in the hopper.

• Temperature sensitivity: Chocolate sauce, honey, wax-containing cosmetics, and certain adhesives may become dramatically thicker when the temperature falls.

• Particle interference: Seeds, herbs, fruit pieces, or exfoliating particles may obstruct valves or prevent complete nozzle closure.

Wholesalers should therefore avoid choosing a machine from a generic viscosity number alone. Laboratory methods such as ASTM D2196 can be used to evaluate apparent viscosity, shear-thinning behavior, and thixotropic characteristics. More importantly, the proposed machine should be tested with the customer’s actual product at the intended production temperature.

Step 1: Build an Accurate Product Profile

The first selection step is to document how the paste behaves in production—not only how it looks in a sample jar.

Ask the customer to supply a technical product profile containing:

• Minimum and maximum viscosity

• Measurement method, spindle, speed, and temperature

• Normal processing and filling temperature

• Product density

• Maximum particle or fiber dimensions

• Particle concentration

• Tendency to foam, drip, stretch, crystallize, or separate

• Sensitivity to shear

• Acidity, alkalinity, salt content, or solvent content

• Allergen and cross-contamination considerations

• Required contact-part materials

• Maximum permitted product temperature loss before filling

Viscosity data without test conditions can be misleading. A value measured at 50°C cannot be used to predict how the same product will fill at 20°C. Similarly, two readings obtained with different instruments or spindle speeds may not be directly comparable.

Use the following product classification as a starting point.

A representative sample should come from the same formulation and production process that the end user intends to run. A substitute with similar thickness is rarely sufficient when the final product contains particles, air, or temperature-sensitive ingredients.

Step 2: Match the Machine Platform to the Package

After defining the product, determine the package style and commercial volume range.

Small sachets and pillow bags

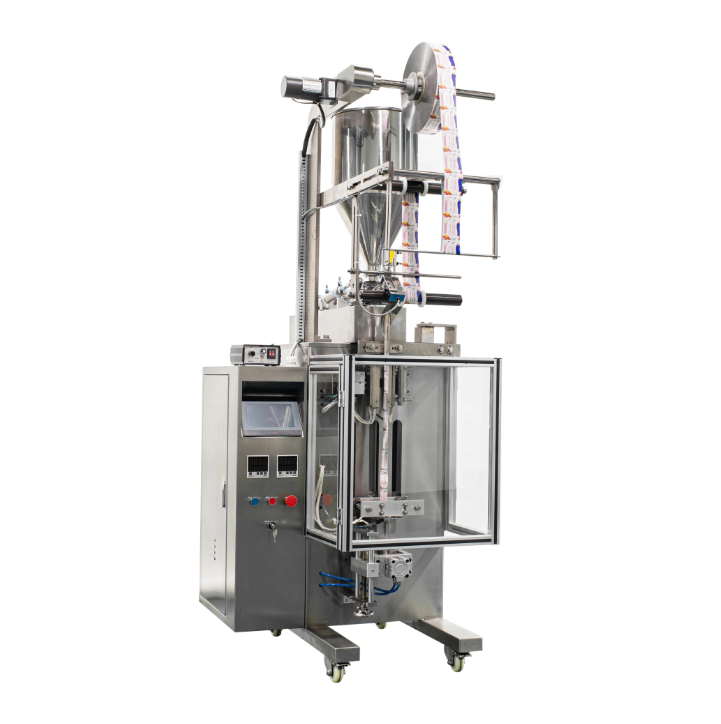

A Liquid Paste Packing Machine is suitable for forming, filling, and sealing small bags from roll stock. Typical applications include single-use portions of sauce, honey, shampoo, lotion, gel, and condiments.

This format is attractive to wholesalers serving:

• Foodservice portion-pack suppliers

• Hotel amenity manufacturers

• Cosmetic sample producers

• Household chemical brands

• Pharmaceutical and personal-care contract packers

One OnFocusPack small-bag vertical model, for example, lists a reference filling range of 20–250 ml, multiple seal styles, and output up to 40 packs per minute. These figures are model-specific. Actual output and accuracy depend on product behavior, fill volume, film, bag length, and sealing conditions.

Multiple narrow packages at high output

A Multi-Line Liquid & Paste Packing Machine uses several lanes to produce multiple sachets during each machine cycle. It is often the better platform when the customer needs high output from compact single-dose packages.

Multi-lane production can be commercially valuable for:

• Ketchup, mayonnaise, and dressing sachets

• Honey and syrup portions

• Cosmetic cream samples

• Pharmaceutical gels

• Shampoo and lotion sachets

• Concentrated detergent packages

However, total nominal speed should not be the only evaluation criterion. Wholesalers should check lane-to-lane filling consistency, film tracking, temperature uniformity across the sealing jaws, accessibility for cleaning, and the time required to restart all lanes after a product change.

Large bags and institutional packs

A Large Bag Paste Packing Machine is intended for larger quantities such as foodservice sauces, industrial products, and bulk refills.

Large-format machines require special attention to:

• Bag support during filling

• Film strength

• Product impact on the bottom seal

• Filling nozzle diameter

• Air removal

• Finished-bag discharge

• Conveyor capacity

• Seal cooling before transport

OnFocusPack large-format liquid and paste models provide different filling ranges and reference speeds according to configuration, with some model options extending to several kilograms per bag. A product trial is essential because an 8 kg free-flowing liquid and an 8 kg high-viscosity paste create very different pumping, filling, and sealing demands.

Step 3: Choose the Correct Metering and Pumping System

The filling system is the core of a paste packaging machine. The correct choice depends on viscosity, particles, fill quantity, cleaning method, and the degree of product damage that can be tolerated.

For wholesalers, a piston system often offers a practical balance for common sauces, creams, and gels. Nevertheless, it should not automatically be specified for every application. A shear-sensitive emulsion may require gentler handling, while a product with large particles may need special rotary valves and a wider product path.

Important questions include:

• Is the pump integrated into the packaging machine or fed from an external production tank?

• Can the system maintain stable inlet pressure?

• Are seals and hoses compatible with the product?

• Can the pump run dry without damage?

• How is the filler calibrated?

• Can operators adjust acceleration and deceleration?

• Which parts are expected to wear, and how quickly?

• Can the system be cleaned without removing the entire filling assembly?

Step 4: Specify the Hopper and Product-Conditioning System

A correctly selected pump can still perform poorly if the hopper does not keep the product in a stable condition.

Hopper capacity

The hopper should hold enough product to support continuous operation without creating excessive residence time. An oversized hopper may allow temperature loss or separation. An undersized hopper may cause repeated low-level interruptions and unstable feed pressure.

Agitation

Products containing suspended particles or ingredients with different densities may require slow agitation. Excessive agitation can incorporate air, damage particles, or alter the texture of shear-sensitive emulsions.

The agitator should be selected according to the product rather than added as a generic accessory. Blade shape, rotational speed, clearance, and motor torque all matter.

Heating

A jacketed hopper may be necessary for products such as chocolate sauce, honey, wax-containing cream, or hot-fill food pastes. If temperature control is needed, review the complete product path, including the hopper outlet, pump, hose, valves, and nozzle. Heating only the hopper may not prevent the paste from cooling and thickening inside downstream components.

Level control

A level sensor and automatic feeding system can reduce fill variation caused by changing product head pressure. The sensor must be compatible with foam, sticky deposits, and the electrical properties of the product.

Wholesalers should clarify whether the customer will feed the machine manually, from a transfer pump, or directly from a production vessel. This interface is frequently overlooked during quotation.

Step 5: Control Dripping, Stringing, and Seal-Area Contamination

Contaminated seals are among the most common causes of rejected paste packages. Even a small amount of sauce, cream, or gel between the film layers can weaken the seal or create a leak channel.

The filling nozzle may require:

• A positive shutoff valve

• Suck-back control

• A diving or bottom-up filling motion

• A nozzle-lift sequence

• A string-cutting mechanism

• A heated nozzle

• A wide port for particles

• A sanitary connection for rapid removal

• A drip tray during stops

The ideal filling profile is not always a single constant-speed stroke. A servo-controlled cycle may begin slowly, accelerate during the main fill, and slow again before cutoff. This reduces splashing and gives the valve time to close cleanly.

The relationship between filling and sealing must also be considered. Increasing speed may cause the bag to move into the sealing station before the product strand has separated. The machine could then show acceptable filler accuracy but still produce leaking packages.

During a trial, inspect more than the finished weight. Check the inside of the seal area, the nozzle tip, the forming tube, and the film path for gradual product accumulation.

Step 6: Validate the Film and Sealing Process

The packaging film must be tested on the proposed machine. A film specification that works on another machine may behave differently because of variations in jaw design, temperature distribution, pressure, dwell time, and cooling.

Evaluate:

• Film structure and total thickness

• Heat-seal layer

• Coefficient of friction

• Print-mark consistency

• Roll diameter and core size

• Film tension

• Required seal temperature window

• Hot-tack performance

• Resistance to oil, acid, alcohol, or fragrance

• Puncture resistance

• Product shelf-life barrier requirements

The sealing process should create enough strength without distorting, burning, or excessively thinning the film. ASTM F88/F88M provides a recognized method for measuring the seal strength of flexible barrier materials. Seal-strength testing is useful for comparing settings and monitoring process consistency, but it should be combined with leak testing and application-specific shelf-life validation.

For paste applications, deliberately challenge the process during factory testing. Slightly vary product temperature, fill position, and machine speed to determine whether the sealing window is robust or extremely narrow.

Step 7: Calculate Realistic Production Capacity

Machine speed should be expressed in sellable, conforming packages—not only mechanical cycles per minute.

A useful calculation is:

Sellable output per hour = Packages per minute × 60 × Production efficiency × First-pass quality rate

For example, suppose a machine produces 35 packages per minute, operates at 85% production efficiency, and achieves a 98% first-pass quality rate:

35 × 60 × 0.85 × 0.98 = 1,749 sellable packages per hour

This is more useful than quoting a theoretical output of 2,100 packages per hour.

Production efficiency should account for:

• Film roll replacement

• Product replenishment

• Cleaning

• Recipe changeover

• Nozzle inspection

• Minor stops

• Seal-temperature stabilization

• Operator breaks

• Product variation

• Rejection and rework

When comparing machines, use the same bag dimensions, fill weight, product temperature, and film. A speed achieved with water should not be presented as the expected speed for honey, mayonnaise, or particle-containing sauce.

For multi-lane machines, calculate both total output and lane availability. If one lane stops, determine whether the remaining lanes can continue operating and whether the film can still be used efficiently.

Step 8: Evaluate Cleaning and Hygienic Design

Cleaning requirements depend on the market. A food plant processing allergen-containing sauces has different needs from a cosmetic factory filling several colors of facial cream.

The design review should cover:

• Product-contact material

• Surface condition and weld quality

• Gaskets and seal compatibility

• Tool-free disassembly

• Drainability

• Dead spaces and product traps

• Accessibility around the hopper and filler

• Hose length and routing

• Protection of bearings and electrical components

• Cleaning verification

• Changeover between allergens, colors, fragrances, or active ingredients

The EHEDG hygienic design principles emphasize risk-based equipment design and cleanability for food manufacturing environments. Wholesalers should use such principles to guide technical discussions, while confirming the exact regulatory and sanitation requirements of each destination market.

A statement such as “stainless steel machine” is not enough. Confirm which parts contact the product, the stainless-steel grade used in those parts, how joints are constructed, and whether the machine can be inspected after cleaning.

Ask the supplier to demonstrate disassembly and reassembly during the factory test. Record the number of tools, operators, and minutes required. Changeover time can have a greater effect on daily output than a small difference in maximum speed.

Step 9: Review Controls, Safety, and Changeover

A modern paste packaging machine should help operators reproduce validated settings. Useful control functions may include:

• Recipe storage

• Servo filling profiles

• Temperature-zone monitoring

• No-film and film-end detection

• Low-product alarms

• Print-mark correction

• Batch counters

• Password-controlled settings

• Alarm history

• Maintenance reminders

• Production data export

• Remote diagnostic capability, subject to cybersecurity policies

For wholesale distribution, multilingual operator interfaces can increase the machine’s suitability across export markets. However, translations should be clear and complete, including alarm messages and maintenance instructions.

Safety should be reviewed for the final installation, including guarding, interlocks, emergency stops, electrical standards, hot surfaces, compressed-air isolation, and safe access for cleaning. Applicable requirements vary by country, customer, and industry, so wholesalers should document the intended destination before finalizing the configuration.

Changeover deserves equal attention. If customers run many package sizes, verify:

• Time required to change the forming set

• Adjustment range of the bag-length controls

• Whether the filler can cover all required volumes

• Need for different pistons, cylinders, valves, or nozzles

• Recipe-setting repeatability

• Film alignment after changeover

• Amount of product and film wasted during restart

Step 10: Conduct a Product Trial and Factory Acceptance Test

A factory acceptance test should reproduce the real application as closely as possible. Send enough product and film for machine setup, stabilization, parameter optimization, and an extended production run.

Recommended paste packaging machine test plan

Do not limit the test to a short demonstration at reduced speed. Some paste-related problems appear only after the product has remained in the hopper, the nozzle has completed hundreds of cycles, or deposits have accumulated near the sealing area.

Retain approved samples from the test. Record machine settings, product batch, temperature, film code, bag dimensions, and test date. These samples provide a reference for commissioning and future troubleshooting.

How Wholesalers Can Build a More Profitable Paste Packaging Machine Portfolio

A wholesale portfolio should not consist of one generic machine advertised for every paste. A more useful strategy is to define application tiers.

Entry-level small-bag platform

Suitable for customers with moderate output, limited package sizes, and smooth products such as shampoo, gel, honey, and light sauce.

Flexible mid-range platform

Configured with interchangeable filling components, recipe controls, agitation, and optional heating. This tier can serve contract packers and manufacturers with frequent product changes.

High-output multi-lane platform

Designed for standardized single-dose products produced in large quantities. It should be supported by strong film-control, lane-balancing, and cleaning procedures.

Large-format platform

Intended for foodservice, industrial, and refill packages. It may need reinforced bag handling, larger product paths, and integrated conveyors.

This portfolio structure enables wholesalers to sell according to application and production value rather than competing only on the lowest purchase price.

A quotation template should clearly separate:

• Standard machine configuration

• Filling system

• Product-contact materials

• Hopper capacity

• Heating or agitation options

• Nozzle and valve design

• Coding equipment

• Conveyor or collection system

• Recommended spare parts

• Installation and commissioning

• Training

• Warranty

• Documentation

• Shipping terms

• Compliance-related options for the destination market

How to Evaluate the Packaging Machine Manufacturer

The machine supplier should be able to translate product data into an explainable technical configuration. If the recommendation is based only on package size and target speed, important paste-handling risks may remain unresolved.

Ask potential manufacturers for:

1. Experience with comparable products

2. Videos or test results from relevant applications

3. A clear description of the filling principle

4. Product-contact material documentation

5. Component brands and replacement-part availability

6. Electrical and pneumatic drawings

7. Operating and maintenance manuals

8. Recommended spare-parts list

9. Remote and on-site support options

10. Written factory acceptance criteria

OnFocusPack manufactures automatic packaging equipment across small-bag, multi-line, premade-pouch, and large vertical packaging formats. Wholesalers should provide complete product and package data so that the filling system, hopper, nozzle, sealing arrangement, and controls can be matched to the intended application.

The best supplier is not simply the one offering the highest advertised speed. It is the one that identifies application risks early, tests the real product, documents the agreed performance, and supports the distributor after delivery.

Common Selection Mistakes Wholesalers Should Avoid

Treating every paste as a thick liquid

Paste behavior can change under pumping, temperature variation, and storage. Product trials are essential.

Selecting the pump before analyzing particles

A pump may handle the viscosity but damage particles or become blocked by fibers, seeds, or solid inclusions.

Ignoring the upstream feed system

An excellent filler cannot maintain accuracy if the hopper runs low or the external transfer pump creates unstable pressure.

Comparing speeds obtained under different conditions

A machine tested with water, a short bag, or a small dose cannot be directly compared with one tested using the real paste and final package.

Focusing on filling accuracy but not seal cleanliness

Correct weight does not make a sellable package if paste contaminates the seal.

Assuming one cylinder or nozzle covers every volume

Extremely broad filling ranges may require change parts to maintain accuracy and speed.

Underestimating cleaning time

Daily cleaning and product changeover affect actual capacity, labor, and customer satisfaction.

Purchasing without agreed acceptance criteria

Performance expectations should be documented before production begins, including product, film, fill tolerance, speed, and test duration.

Final Paste Packaging Machine Selection Matrix

Use this matrix to create a shortlist before requesting a detailed proposal.

The final decision should be based on the combination of product behavior, package format, stable sellable output, cleaning time, operator capability, maintenance support, and total ownership cost.

A well-selected Paste Packaging Machine gives wholesalers more than another item in a catalog. It provides a repeatable solution that can be matched to defined customer segments, demonstrated with real products, and supported throughout its operating life. With appropriate application data and a documented trial, OnFocusPack equipment can be configured for a range of sauce, cream, gel, shampoo, lotion, condiment, and other viscous-product packaging projects.

FAQs

1. Can a paste packaging machine handle products whose viscosity changes during storage?

It can, provided the expected viscosity range is identified during selection. The machine may need adjustable filling profiles, stronger product feeding, agitation, or temperature control. Testing should include samples representing both ends of the viscosity range rather than only freshly manufactured product.

2. How should paste containing trapped air bubbles be packaged?

The product may require vacuum deaeration before packaging, slower hopper agitation, a controlled transfer pump, or bottom-up filling. Air bubbles can affect volume, weight consistency, package appearance, and oxidation, so the source of aeration should be identified before changing machine parameters.

3. Can one paste packaging machine run both hot-fill and cold-fill products?

Potentially, but the configuration must be designed for both temperature conditions. Review the hopper, pump, hoses, seals, nozzle, sensors, film, and guarding. Thermal expansion and changing viscosity may also require separate recipes and calibration procedures.

4. Which spare parts should a wholesaler stock for paste-filling systems?

A practical inventory may include product seals, O-rings, valve components, piston seals, hoses, nozzle seals, heaters, temperature sensors, cutting blades, and commonly used electrical or pneumatic components. The final list should be based on the exact machine configuration and expected local delivery time.

5. How can product separation be prevented when the packaging machine is temporarily stopped?

Possible measures include low-speed intermittent agitation, controlled recirculation, shorter hopper residence time, temperature maintenance, and a defined restart procedure. The method should preserve product texture and particle integrity without introducing air or excessive shear.
