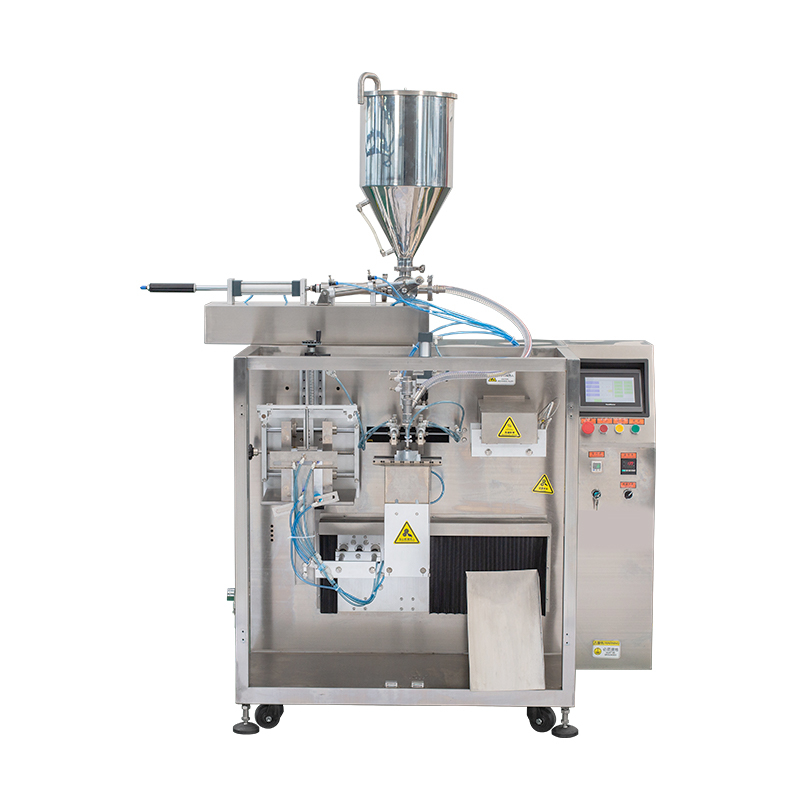

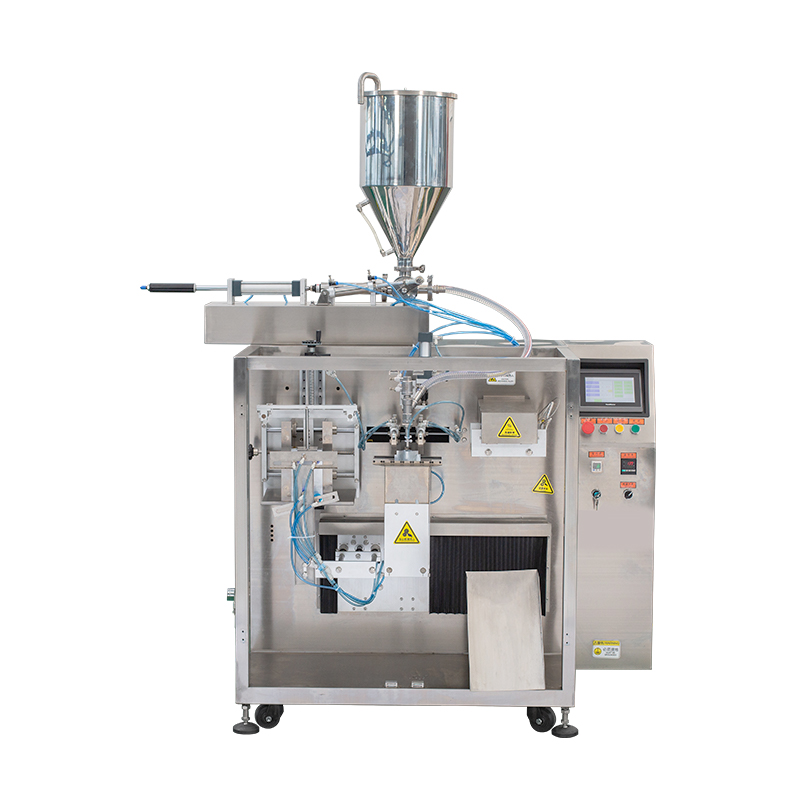

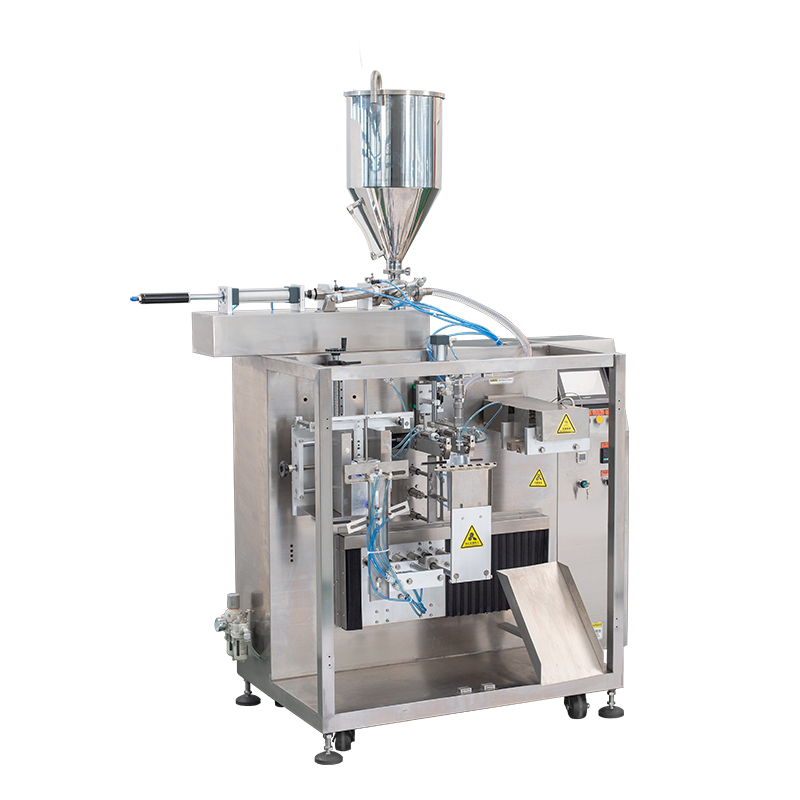

The Small Horizontal Bag Feeding Liquid Paste Packaging Machine is a compact, high-precision packaging solution tailored for low to medium-volume production of liquid and paste products—from thin sauces to high-viscosity creams. Equipped with advanced servo-driven technology (adopting Panasonic servo motors for stable torque output), this machine fully automates three core processes: pre-made pouch feeding (via a vacuum suction cup system to avoid bag damage), volumetric filling (using piston or peristaltic pumps based on material viscosity), and heat sealing. This automation ensures consistent performance across materials with viscosities ranging from 50 to 5000 cP, such as yogurt, facial masks, and industrial adhesives. Its horizontal configuration not only saves up to 30% floor space compared to vertical models (critical for factories with workshop areas under 50㎡) but also reduces operator bending frequency, improving workplace ergonomics. The machine supports multiple pre-made bag types, including stand-up pouches (with bottom gusset widths of 20–50mm), zipper bags, and three-side seal bags, with a flexible filling range of 5ml to 500ml—adjustable via a digital control panel to accommodate diverse product requirements, from small cosmetic samples to family-sized sauce packs.
Product Advantage |
Featuring a temperature-controlled sealing system with PID (Proportional-Integral-Derivative) regulation, the machine achieves a 99.9% sealing success rate by maintaining a stable sealing temperature range of 80–220℃ (adjustable in 1℃ increments). This effectively prevents leaks even for high-viscosity, oil-based materials like honey, chocolate spread, and cosmetic creams. The anti-drip filling nozzle—made of food-grade PTFE (polytetrafluoroethylene) to resist chemical corrosion—minimizes product waste (reducing residual material to less than 0.2ml per cycle) and maintains production line cleanliness, eliminating the need for frequent wipe-downs between batches.
With a filling accuracy of ±0.5%, this machine outperforms manual filling methods (which typically have an error rate of 5–10%) and meets strict dosage requirements for compliance-critical industries such as pharmaceuticals and medical cosmetics. It operates at speeds of 25–45 bags per minute, with a variable speed control that allows operators to adjust output based on material flowability—for example, slowing to 25 bags/min for thick pastes like peanut butter and increasing to 45 bags/min for thin liquids like salad dressing. Additionally, the machine’s dual-pump design enables parallel filling for two identical products, boosting efficiency by up to 50% for high-demand items.
The intuitive 7-inch color touchscreen interface (with multilingual support for English, Spanish, and Mandarin) allows operators to adjust parameters such as filling volume, sealing time (0.5–3 seconds), and conveyor speed (1–5m/min) without technical expertise. All contact parts (including the filling cylinder, hopper, and nozzle) are removable without tools, facilitating quick cleaning and reducing downtime between product changeovers—critical for businesses producing multiple flavors or formulations. The machine also includes a built-in error alarm system (with visual and audible alerts) for issues like low bag supply or abnormal sealing temperature, ensuring timely intervention to avoid production losses.
Technical Parameters |
| Model | AH-SPM-T200 |
| Making bag size | (L)100-280mm (W)80-200mm |
| Packing Speed | 1-30 packets/min |
| Filling Range | 2~1000g |
| Air consumption | 0.7 m3 / min |
| Power Supply | 220V 50HZ |
| Measuring accuracy | ≤±1.2% |
| Packing material | Paper/PE, PET/AL, Foil/PE Nylon/PE, Tea-leaf filtering paper, etc. |
| Weight | 400KG |
| Dimension | 1000*700*1420MM |
Product Uses |
This machine excels in packaging liquid and paste products across industries, with tailored adaptations for specific material properties:
• Cosmetics & Personal Care: Facial creams (including oil-in-water emulsions), body lotions, hair serums, eye masks (gel-based), and liquid foundation (with anti-clog nozzles to prevent pigment buildup).
• Food & Beverage: Salad dressings (oil-vinegar blends), tomato sauce, honey (heated hopper option to maintain fluidity), peanut butter (with anti-stick coating), and baby food purees (BPA-free contact parts).
• Pharmaceuticals: Ointments (antibacterial stainless steel components), oral liquids (syrups with precise dosing), medicinal pastes (e.g., pain-relief gels), and veterinary care products (like pet wound ointments).
• Household Chemicals: Liquid detergents (low-foam filling design), fabric softeners, shoe polish (creamy consistency), and toilet bowl cleaners (corrosion-resistant parts to handle acidic formulas).
Product Operate Guide |
Turn on the power switch.
Check whether the air pressure is sufficient (must reach the standard requirements).
Click the host to start, and check whether each action is working properly.
Check and clean up each box room.
Put the bag, load the material, put the material box.
Click the host to start.
The product that is packaged in vacuum for the first time should be checked whether the seal is firm, whether the suction is tight and through the water check(Must check vacuum chamber 1-10).
During the production process, check the product sealing and pumping conditions continuously.
Every 2 hours after the machine runs, must be the top cover of the machine, bag clip, and funnel mouth, carried out with an air gun clean.
The bag or material dropped on the machine, should be hooked out with a hook, do not take it by hand.
FAQ |
Q: What bag materials are compatible with this machine, and can it handle thick or textured films?
A: It works with a wide range of flexible packaging materials, including plastic (PE, PP), laminate (PET/PE, NY/PE), and aluminum foil (for light-sensitive products), with thicknesses ranging from 0.08mm to 0.15mm. It also supports textured films (e.g., matte or embossed surfaces) via an adjustable sealing pressure system (0.2–0.5MPa) that ensures tight seals without damaging the film’s texture.
Q: How long does a product changeover take, and is training required for new operators?
A: Typical changeovers take 10–15 minutes, thanks to tool-free adjustments (e.g., quick-release filling nozzles) and pre-stored product recipes (up to 15 groups can be saved, including parameters for filling volume, sealing temperature, and speed). New operators require only 1–2 hours of training to master basic operations, as the touchscreen interface includes step-by-step guides and troubleshooting tips.
Q: Can it handle abrasive pastes with particles, and how durable are the filling components?
A: Yes, the machine’s filling nozzles are made of hardened stainless steel (HRC 58–62) to resist wear from particles up to 3mm in diameter—suitable for products like facial scrubs (with exfoliating beads) or chili sauce (with chili flakes). The nozzles have a service life of over 10,000 operating hours, and replacement parts are readily available to minimize downtime.
