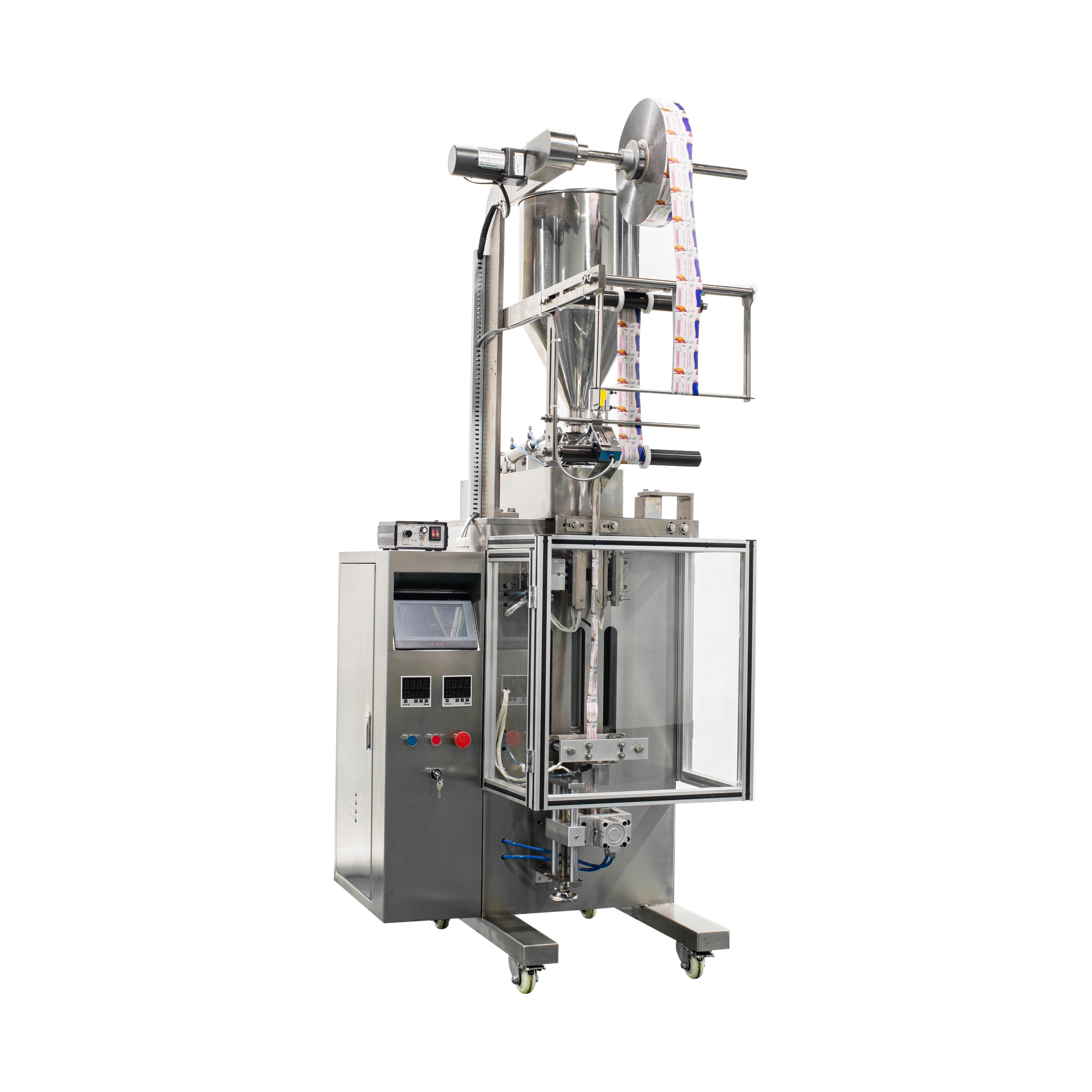

The Onfocus AH-BLQ-240 Small Bag Vertical Reciprocating Liquid/Paste Packing Machine is your premier solution for efficient and precise liquid and paste packaging. We designed this machine to be fast, accurate, and reliable, handling a wide range of products from food and pharmaceuticals to chemicals. With a flexible packing speed, precise dosing, and a robust reciprocating sealing mechanism, it's a powerful addition to your production line. This machine not only boosts your efficiency but also ensures every bag is perfectly sealed and professionally presented, giving you a competitive edge in your market.
| Quantity: | |
|---|---|
The Onfocus AH-BLQ-240 Small Bag Vertical Reciprocating Liquid/Paste Packing Machine is the all-in-one automated solution we've engineered for your liquid and paste packaging needs. Built for both efficiency and precision, our machine streamlines your entire process—from forming the bag to filling, sealing, and cutting—into a single, reliable workflow. We've designed the AH-BLQ-240 with a robust reciprocating sealing mechanism, providing a superior and more secure seal compared to traditional rotary systems. This is especially crucial for preventing leaks with liquids and pastes. With a packing speed of up to 40 bags per minute and a precise filling range of 20-250ML, our PLC-controlled system ensures high accuracy and consistency. It's highly versatile, working with a variety of packaging materials and capable of producing bags with back seal and three- or four-side seals. We've also included smart features like an automatic correction system, a bag counter, and an auto-shutdown function, all to ensure your operations are both efficient and safe.
Product Advantage： |
● High-Speed Reciprocating Action
Our machine uses an advanced reciprocating working principle, allowing it to run at a high speed of up to 40 bags per minute. This design is perfect for small bag packaging, ensuring stable and high-quality results even during high-speed production. The reciprocating seal provides a stronger, flatter seal than traditional rotary systems, which is great for preventing leaks.
● Precise and Reliable Dosing
This machine has a filling range of 20-250ML with a measuring accuracy of ±1.2%. We can equip it with different metering pumps for various liquid and paste materials, ensuring high-precision filling that is both easy to operate and maintain.
● Fully Automated, All-in-One Workflow

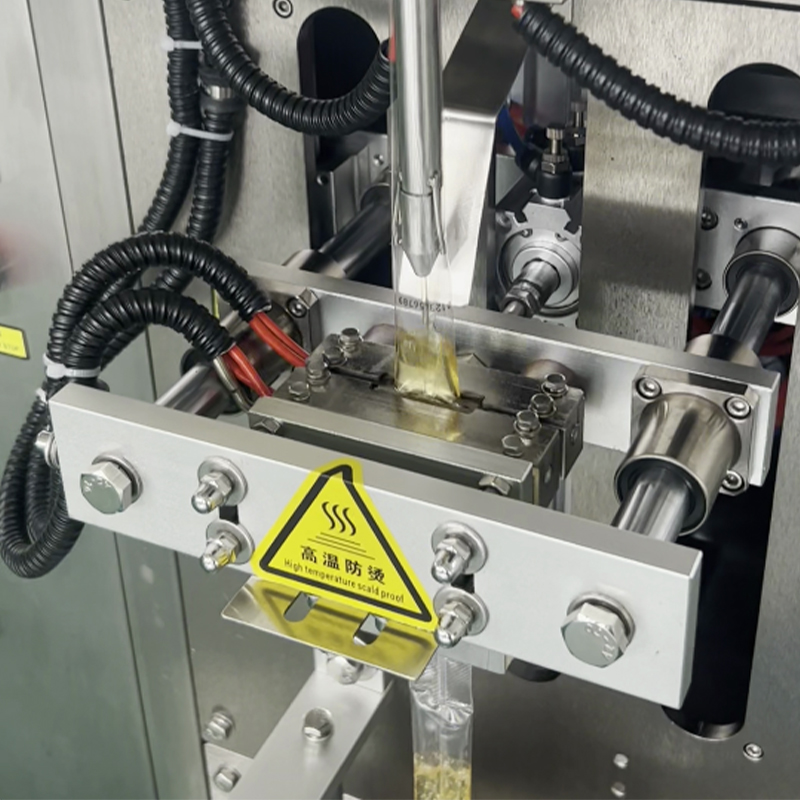

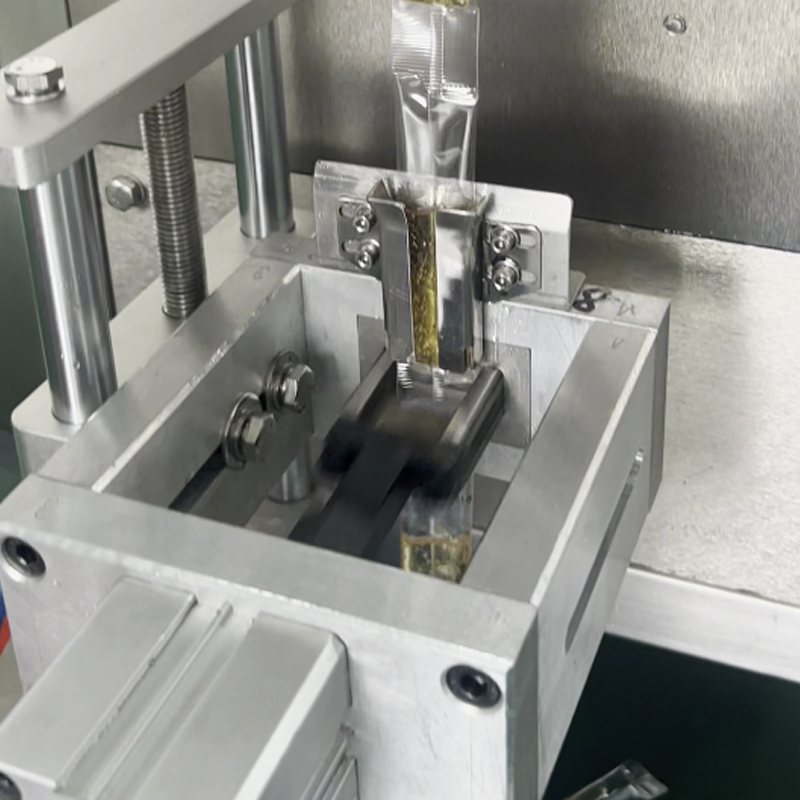

The machine handles the entire packaging process for you, from bag forming out of the film roll to precise filling, secure sealing, and final cutting—all without manual intervention. This dramatically increases your production efficiency and guarantees accuracy and consistency at every step.
● Smart Control and Safety Features

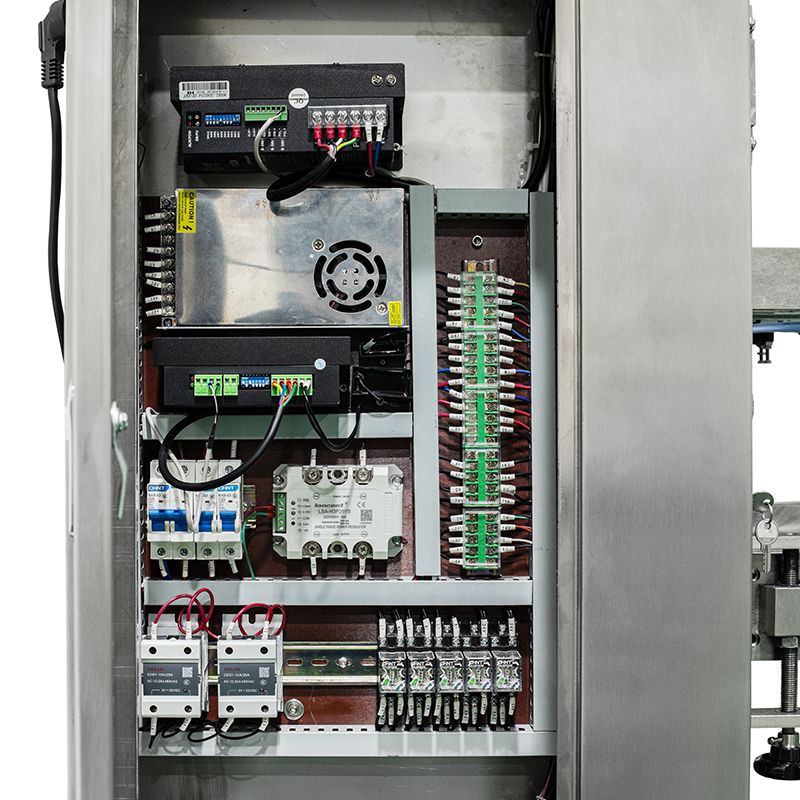

At its core, the machine uses a reliable PLC control system with a user-friendly touch screen. It features an automatic correction function to ensure packaging precision, an auto-counting function to help you monitor production, and an auto-shutdown function that protects the equipment and your staff in the event of a malfunction.
● Wide Compatibility with Packaging Materials
Our machine is compatible with a variety of composite packaging materials, including common options like Paper/PE, PET/AL, Nylon/PE, and even tea-leaf filtering paper. This gives you great flexibility in choosing packaging designs that fit your product and market needs.
● Customizable Bag Sizes and Types
With a maximum film width of 240mm, the bag size can be customized to your specific requirements. It can also produce bags in different formats, such as three-side or four-side seals, ensuring your product packaging is professional and perfectly suited for your brand.
● Compact and Durable Construction
The machine's body is made from stainless steel, making it durable and easy to clean. Its compact vertical design takes up minimal floor space, is easy to move, and is perfect for sanitary environments, allowing for stable, long-term use in various industries.
Technical Parameters： |
| Model | AH-BLQ-240 |
| Making bag size | Three sides, four sides:(L)30~160mm (W)25mm(min) |
| back seal:(L)30~200mm (W)20mm(min) | |
| Packing Speed | 0-40 packets/min |
| Filling Range | 20-250ML |
| Maximum film width | <240MM |
| Heat seal power | 1600W (four-sided seal 2200w) |
| Power Supply | 220V 50HZ |
| Measuring accuracy | ≤±1.2% |
| Packing material | Paper/PE, PET/AL, Foil/PE Nylon/PE, Tea-leaf filtering paper, etc. |
| Weight | 290KG |
| Dimension | 770*1100*1820MM |
| (Packing in wooden case) | |
| note | A die is provided by default |
Product Uses： |
1. Beverage and Food Industry
Our machine handles a wide range of your products. It provides precise filling for liquids like milk, juice, and coffee. We also offer a no-drip solution for viscous goods such as cooking oils, ensuring a clean and efficient production process for you.
2. Chemical Industry
Our machine handles your chemical products with varying thicknesses. It accurately fills liquids like laundry detergent and body wash. We manage thick pastes and gels like hand sanitizer, providing a strong, leak-proof seal for every package.
3. Pharmaceutical Industry
We provide a reliable packing solution for your pharmaceutical products. Our machine delivers precise filling for liquid medicines and oral solutions. It also ensures a clean process for products like disinfectants, helping you maintain safety and quality standards.
Product Operate Guide： |
● Turn on the power switch.
● Check whether the air pressure is sufficient (must reach the standard requirements).
● Click the host to start, and check whether each action is working properly.
● Check and clean up each box room.
● Put the bag, load the material, put the material box.
● Click the host to start.
● The product that is packaged in vacuum for the first time should be checked whether the seal is firm, whether the suction is tight and through the water check(Must check vacuum chamber 1-10).
● During the production process, check the product sealing and pumping conditions continuously.
● Every 2 hours after the machine runs, must be the top cover of the machine, bag clip, and funnel mouth, carried out with an air gun clean.
● The bag or material dropped on the machine, should be hooked out with a hook, do not take it by hand.
FAQ： |
Q: How can I know your machine is designed for my product?
A: You can Send us product samples and Have a test on our Machine
Q: Do you have any technical supports?
A: Yes,we have a profeesional team of engineers who owned many installation,debug and trainning experiences abroad,are available to service machinery overseas.
Q: How can I know the machinery quality before shipping?
A: We will invite you visiting our factory to check the machines quality,and show the machine running to you in our factory.If you don't have time to vist we can record videos for you and try our best to meet your requirements.
