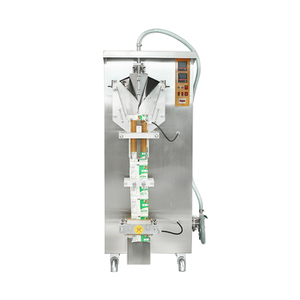

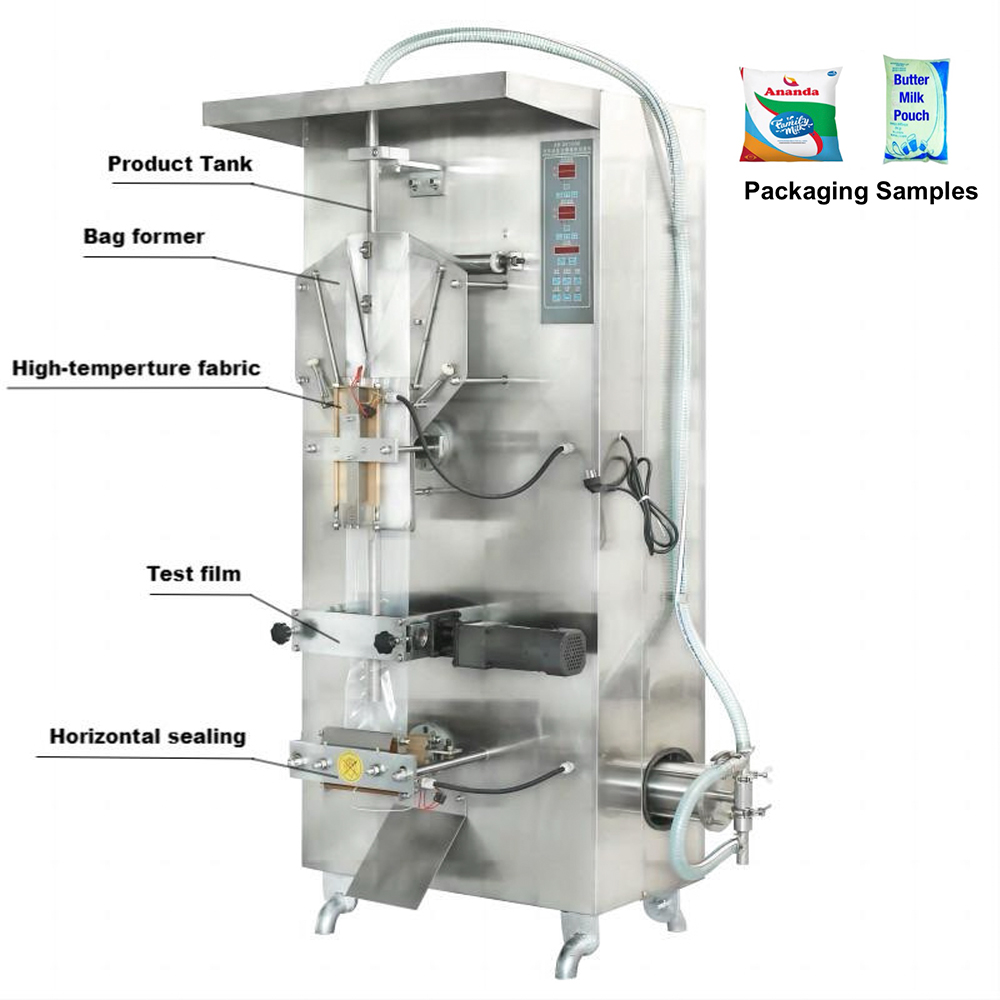

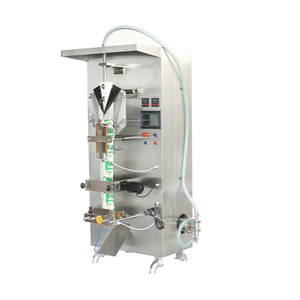

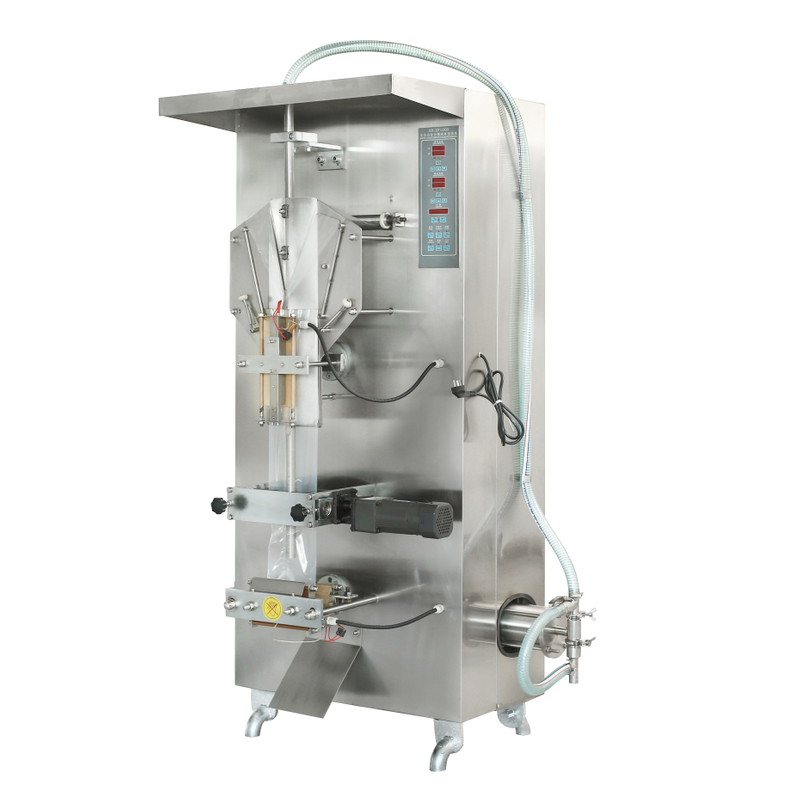

Our AH-ZF1000 Vertical Liquid Packing Machine is a cutting-edge, fully automated solution designed to revolutionize your liquid product packaging. Built for both efficiency and precision, we've integrated the entire packaging process—from extracting liquid from the storage tank to filling, bag formation, and final sealing—into a single, seamless
workflow for you.
Engineered to handle a diverse range of products, the AH-ZF1000 is perfectly suited for low to high-viscosity liquids, including your beverages, sauces, oils, detergents, and chemicals. Our advanced control system ensures a high packing speed of 30 bags per minute while maintaining an impressive filling accuracy for volumes between 100-500 ml. By automating the entire process, this machine not only significantly boosts your production capacity but also guarantees consistent quality and reduces the need for manual labor, making it an essential investment for your modern production line.
Product Advantage： |
● Fully Automated All-in-One Design
Integrates automatic liquid extraction, filling, bag-making, and sealing for streamlined, high-efficiency production.
● Significant Production Efficiency
With a packing speed of 30 bags per minute, the AH-ZF1000 dramatically boosts your capacity to meet large-volume demands.
● High-Precision Filling System
Advanced control technology ensures accurate filling volume for every bag, minimizing product waste. Reliable sealing technology and a precise filling system ensure attractive, leak-proof packages, enhancing your brand image.
● Exceptional Product Versatility
Handles a wide range of liquid products, from low to high viscosity, saving you from investing in multiple machines.
● Multi-Material Compatibility
Works with a variety of packaging materials, including plastic bags, pouches, and containers of different sizes and shapes. Easily adjustable bag length and width to accommodate various packaging specifications.
● Simple to Operate and Maintain

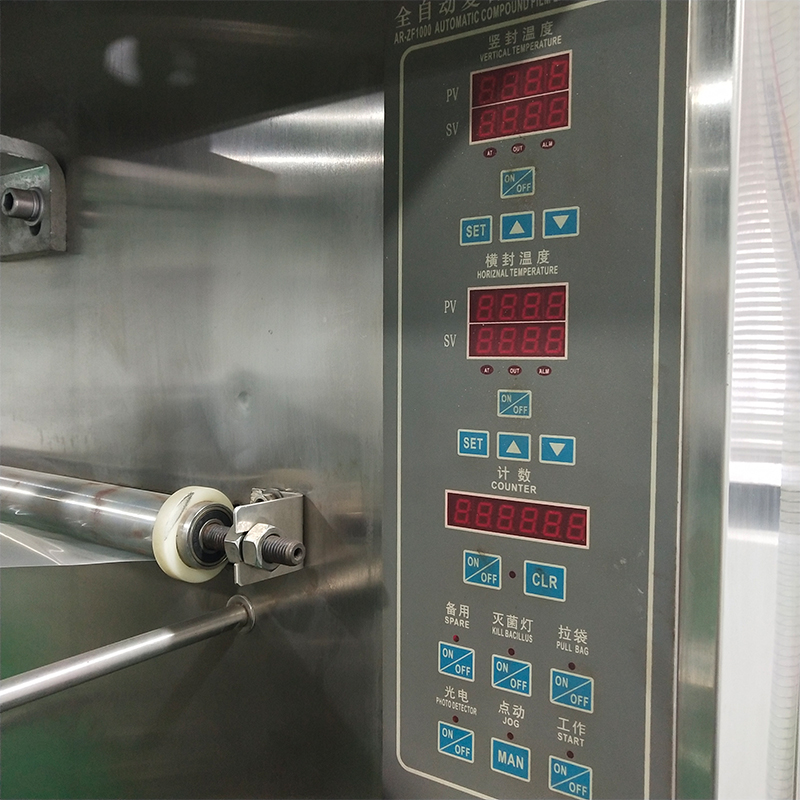

Features an intuitive control system, making daily operation and maintenance straightforward and reducing training time.
● Durable and Reliable
Built with high-quality, robust materials for long-lasting performance, backed by dependable technical support and after-sales service.
Technical Parameters： |
| Model | AH-ZF1000 |
| Making bag size | (L)30~150mm (W)110-150mm |
| Packing Speed | 30 packets/min |
| Filling Range | 100-500ML |
| Packaging film size | 320MM/240MM |
| Heat seal power | 500W |
| Power Supply | 220V 50HZ |
| Measuring accuracy | ≤±1.2% |
| Packing material | PE、PET/PE、PVC/PE、NY/PVDC、PE/PVDC、PP/PVDC |
| Weight | 320KG |
| Dimension | 890*860*2050MM |
| (Packing in wooden case) |
Product Uses： |
1. Food & Beverage Industry
This machine is perfectly suited for packaging everyday consumables. It can handle various beverages like juice, milk, yogurt, and bottled water, as well as thicker liquids such as sauces, condiments, edible oils, and food purees. Its precision filling capabilities ensure consistent product volume, which is essential for consumer satisfaction and brand trust.
2. Daily Chemical Industry
The machine is a go-to solution for packaging household and personal care products. It efficiently packs liquids like shampoo, conditioner, liquid soap, hand sanitizer, dishwashing detergent, and fabric softener. The automated process helps maintain hygiene standards and allows for high-volume production to meet market demand.
3. Chemical Industry
For chemical applications, the AH-ZF1000 provides a reliable and safe method for packaging various liquid chemicals. It is used to fill containers with products such as industrial lubricants, coolants, liquid fertilizers, and other non-corrosive chemical agents. The machine's robust construction ensures durability and safe operation in an industrial setting.
4. Pharmaceutical Industry
The machine is also suitable for specific non-sterile pharmaceutical applications, such as packaging oral liquid medications, antiseptic solutions, and medical gels. The precise filling mechanism is crucial for ensuring accurate dosing and product integrity, meeting the strict quality requirements of the pharmaceutical sector.
Product Operate Guide： |
● Turn on the power switch.
● Check whether the air pressure is sufficient (must reach the standard requirements).
● Click the host to start, and check whether each action is working properly.
● Check and clean up each box room.
● Put the bag, load the material, put the material box.
● Click the host to start.
● The product that is packaged in vacuum for the first time should be checked whether the seal is firm, whether the suction is tight and through the water check(Must check vacuum chamber 1-10).
● During the production process, check the product sealing and pumping conditions continuously.
● Every 2 hours after the machine runs, must be the top cover of the machine, bag clip, and funnel mouth, carried out with an air gun clean.
● The bag or material dropped on the machine, should be hooked out with a hook, do not take it by hand.
FAQ： |
Q: How can I know your machine is designed for my product?
A: You can Send us product samples and Have a test on our Machine
Q: Do you test all your goods before delivery?
A: Yes,we have 100% test before delivery,and if you need,we can record a video about the test process of machine to you.
Q: Do you have any technical supports?
A: Yes,we have a profeesional team of engineers who owned many installation,debug and trainning experiences abroad,are available to service machinery overseas.
Q: How can I know the machinery quality before shipping?
A: We will invite you visiting our factory to check the machines quality,and show the machine running to you in our factory.If you don't have time to vist we can record videos for you and try our best to meet your requirements.
