| Quantity: | |
|---|---|
Product Advantage： |

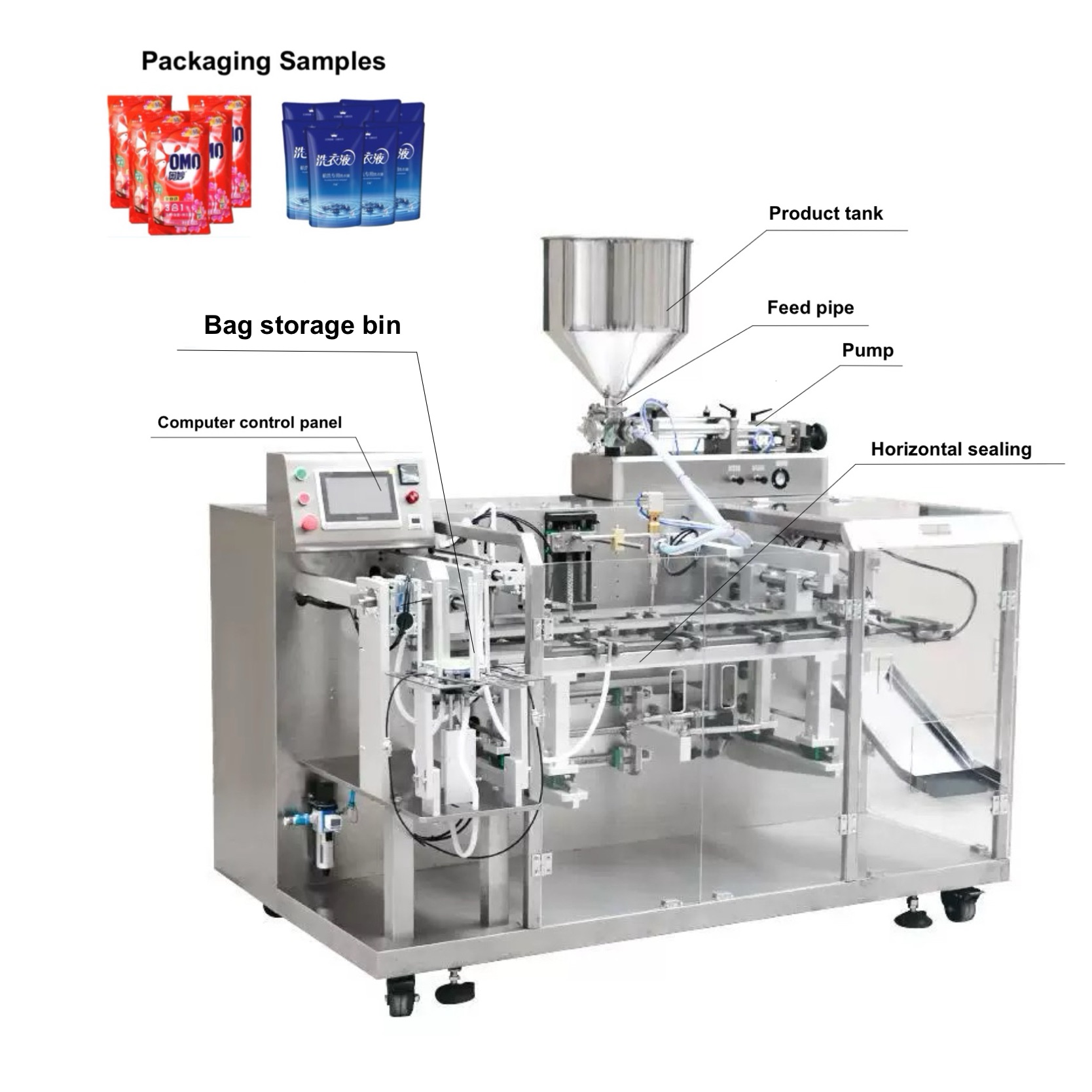

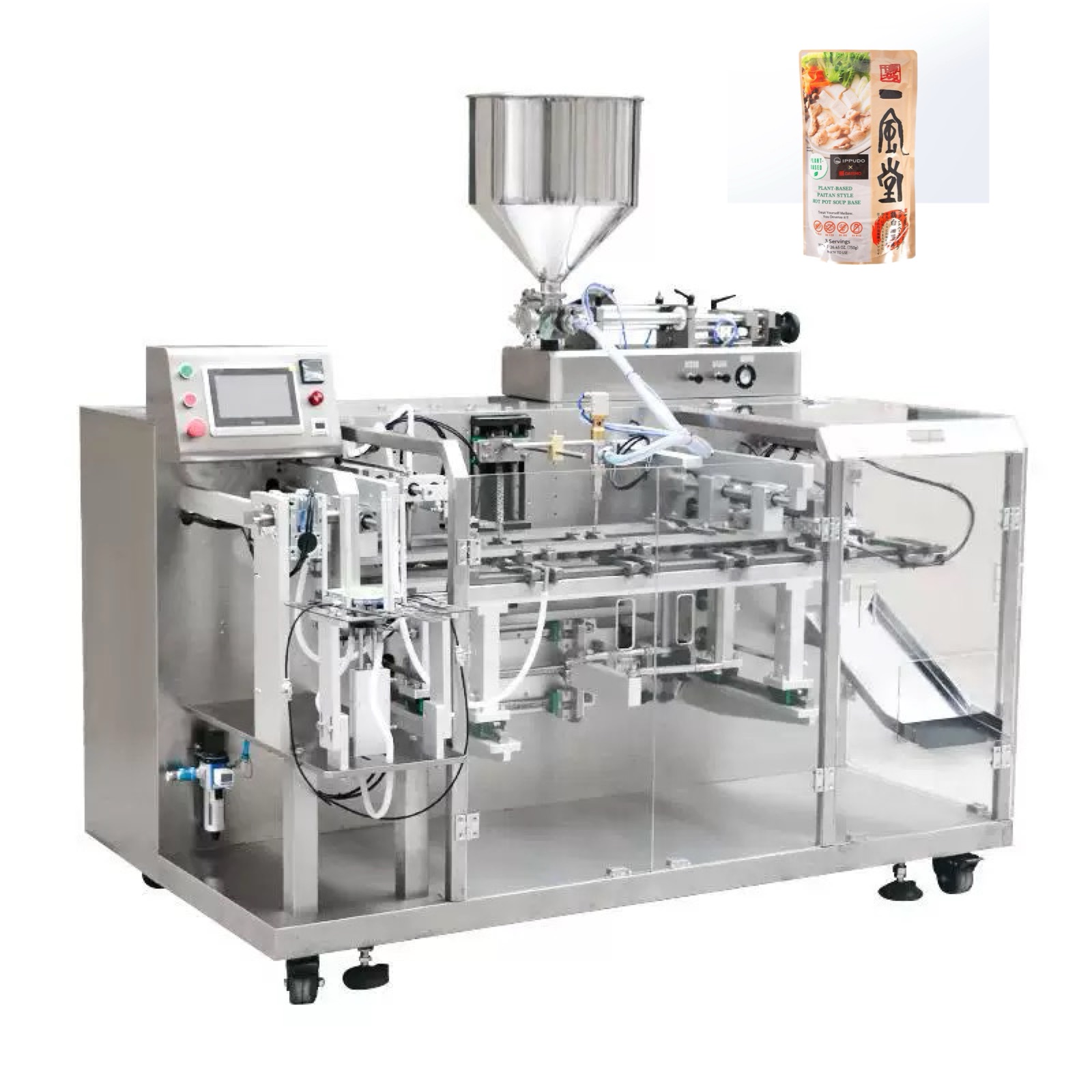

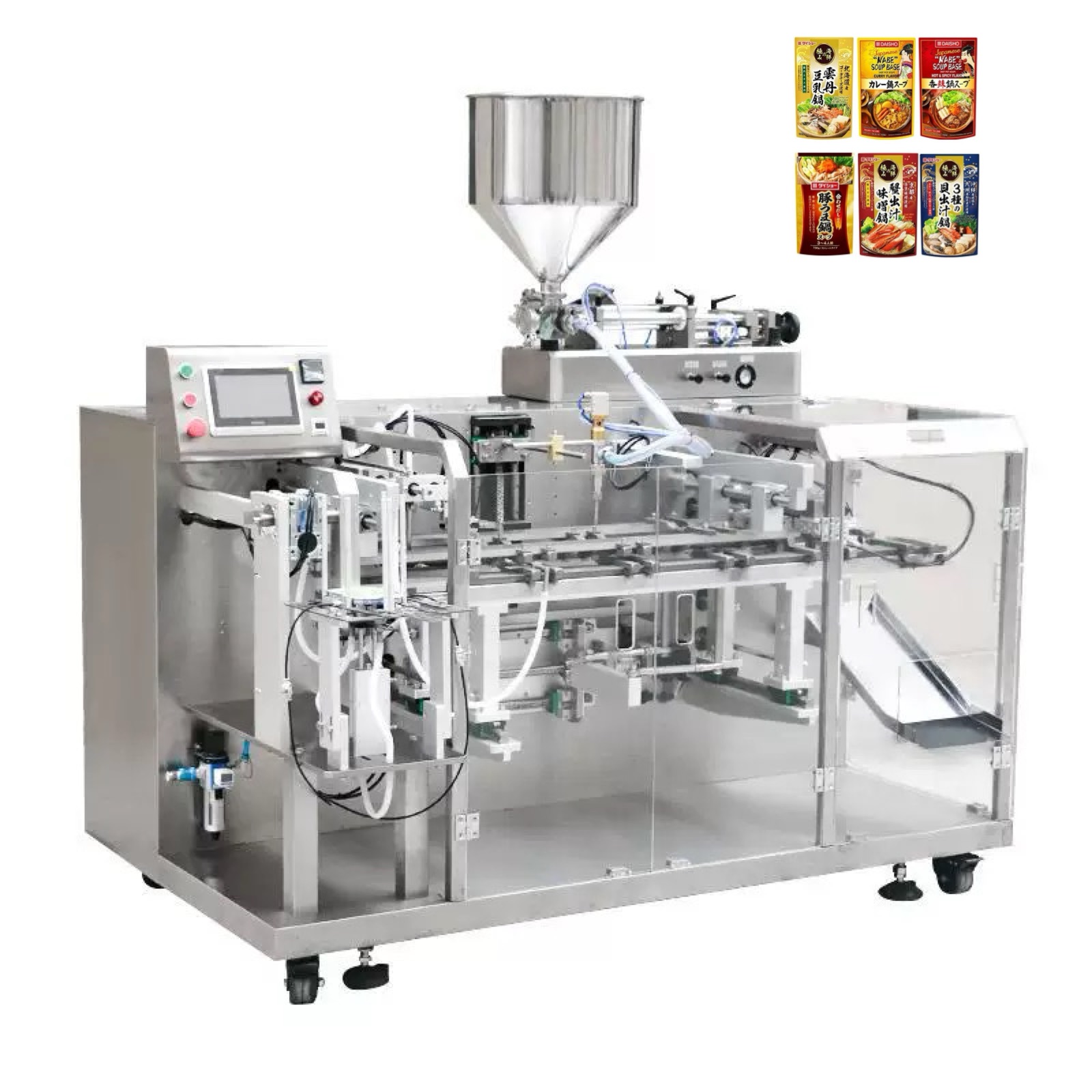

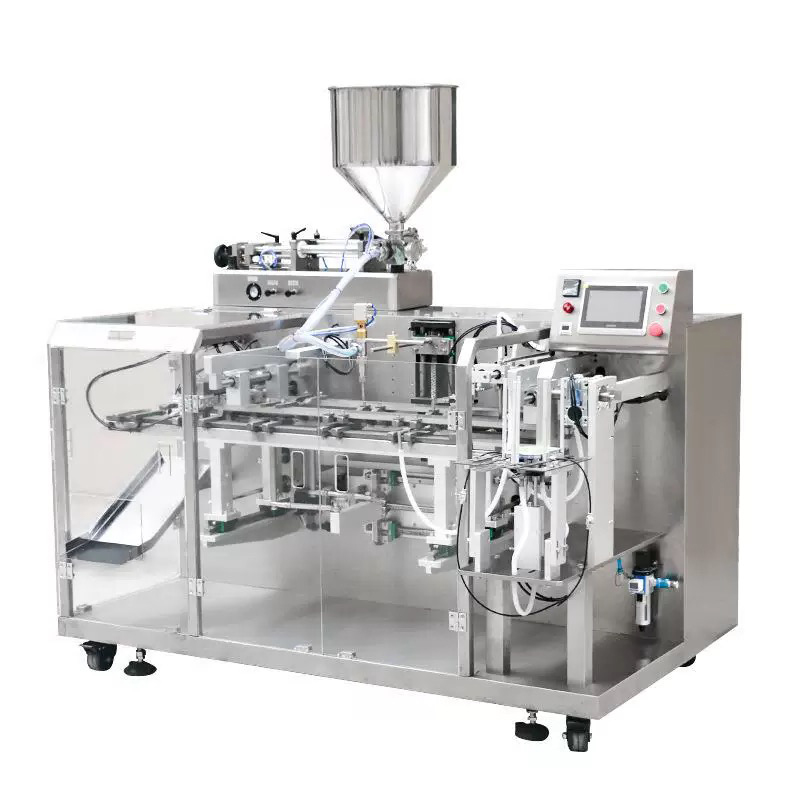

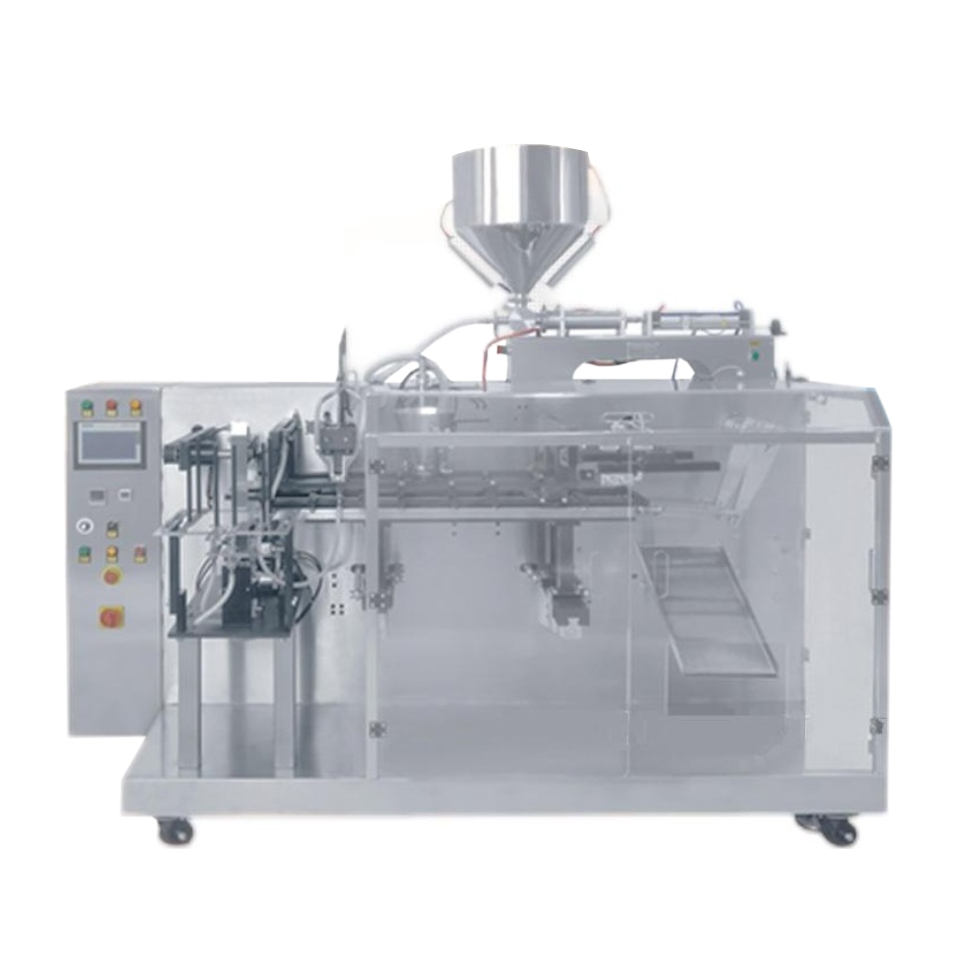

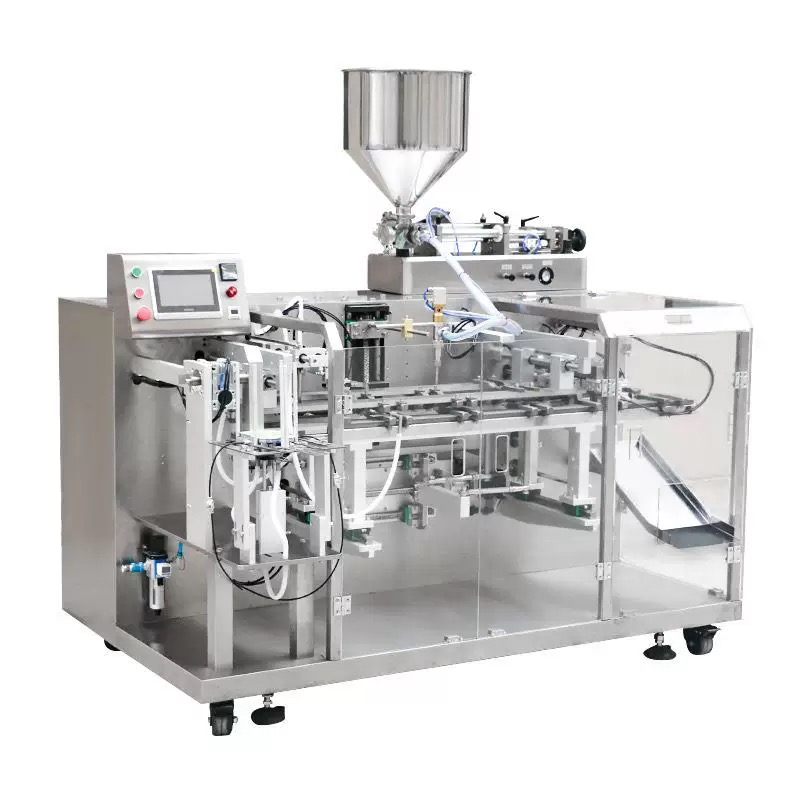

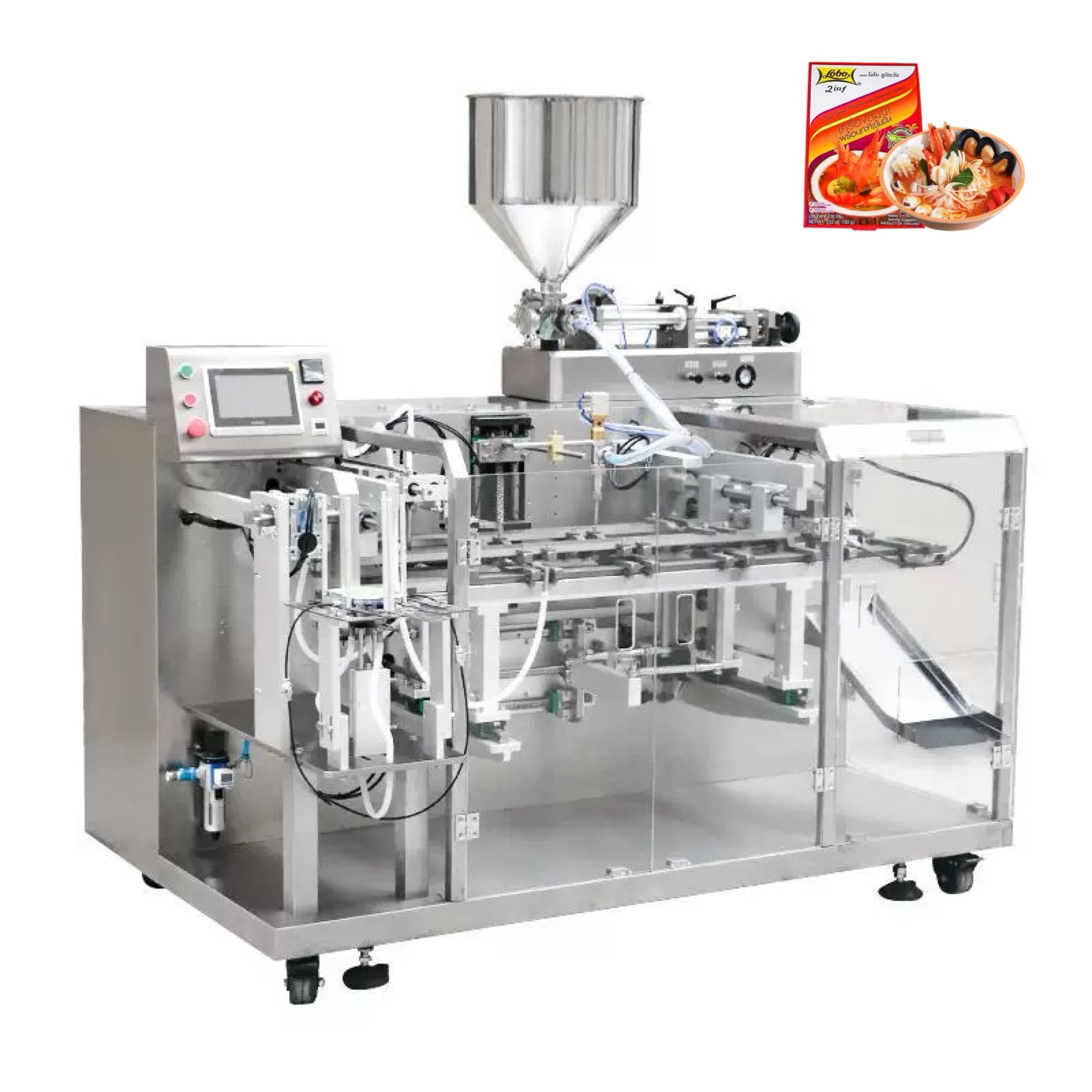

The horizontal pouch feeding liquid packaging machine has the following advantages:
1. In terms of operation and control
● Easy operation:
It adopts PLC control and is equipped with a touch screen human-machine interface control system, which is easy to operate. Parameters and various function switches can be quickly adjusted, reducing the professional requirements for operators.
● Convenient speed adjustment:
It uses a frequency conversion speed regulation device and can freely adjust the speed within the specified range. The packaging speed can be flexibly adjusted according to the actual production needs, improving production efficiency.
2. In terms of packaging quality
● Accurate measurement:
It is equipped with precise metering devices, such as metering pumps, etc., which can ensure that the amount of liquid in each packaging bag is accurate without error, guaranteeing the consistency of product quality.
● Good sealing quality:
Advanced sealing technologies and equipment make the packaging bags firmly and tightly sealed, effectively preventing liquid leakage and contamination, and improving the sealing and shelf life of products.
In terms of material adaptability
● Wide range of applicable materials:
By selecting different meters and discharging devices, it can be applied to the packaging of various liquid materials, such as beverages, soy sauce, vinegar, fruit juice, tomato sauce, jam, detergent, etc. And irregular lumps, meeting the needs of different industries.
3. In terms of packaging bag adaptability
● Diverse bag types:
It is suitable for a variety of pre-made bags, such as stand-up bags, zipper bags, flat bags, hanging hole bags, special-shaped bags, etc., which can meet the packaging needs of different products and provide enterprises with more packaging options.
4. In terms of production efficiency
● Fast packaging speed:
It has a relatively high packaging speed and can meet the needs of large-scale production, effectively improving the production efficiency of enterprises, shortening the production cycle and reducing production costs.
● High degree of automation:
It realizes fully automated operations from bag picking, bag opening, filling, sealing to output, reducing manual intervention, improving production efficiency, reducing labor intensity and labor costs, and at the same time reducing the impact of human factors on product quality.
5. In terms of equipment maintenance and hygiene
● Low maintenance cost:
It adopts high-quality materials and advanced manufacturing processes. The equipment has a reasonable structure, a low failure rate and a long service life, and the daily maintenance is simple, reducing the equipment maintenance costs of enterprises.
● High hygiene standards:
The parts of the machine that come into contact with materials or packaging bags are processed with stainless steel or other materials that meet the requirements of food hygiene, conforming to the hygiene standards of the food processing industry, ensuring the hygiene and safety of food, and can be widely used in industries with high hygiene requirements such as food, medicine and daily chemicals.
6. In terms of space utilization and layout
● Small floor area:
The horizontal pouch feeding packaging machine has a compact structure. Compared with some large packaging equipment, its floor area is relatively small, which is suitable for production sites with limited space.
● Flexible layout:
It can be flexibly placed and installed according to the actual layout and technological process of the production workshop, and it is easy to connect with upstream and downstream production line equipment to realize linked control production, optimize the production process and improve the coordination and continuity of production.
Technical Parameters： |
| Model | AH-SPZ210 | AH-SPT210 | AH-SPF210 | AH-SPM200 | AH-SPM160 |
| Making bag size | (L)150-300mm | (L)150-300mm | (L)150-300mm | (L)100-280mm | (L)100-240mm |
| (W)120-210mm | (W)120-210mm | (W)120-210mm | (W)80-200mm | (W)80-160mm | |
| Packing Speed | 1-45bags/min | 1-45bags/min | 1-45bags/min | 1-30bags/min | 1-30bags/min |
| Power Supply | 220V 50HZ 4KW | 220V 50HZ 4KW | 220V 50HZ 4KW | 220V 50HZ 3KW | 220V 50HZ 3KW |
| Filling Volume Range | 2-1000g | 2-1000g | 2-1000g | 2-1000g | 2-1000g |
| Air consumption | 0.7m³/min | ||||
| Weight | 800KG | 800KG | 800KG | 400KG | 320KG |
| (The main unit part) | |||||
| Dimension | 1780*1270*1250mm | 1780*1270*1450mm | 1780*1270*1250mm | 1000*700*1420mm | 900*650*1220mm |
| (The main unit part) | |||||
Product Uses： |
The horizontal pouch - feeding liquid packaging machine is a versatile piece of equipment with a wide range of applications:
1. Food Packaging：In the food industry, it is widely used for packaging various liquid and semi - liquid food products.
● Beverages: It can package fruit juices such as orange juice, apple juice, and cranberry juice. The accurate metering system of the machine ensures that each pouch contains the exact amount of juice, maintaining the consistency of the product. It is also suitable for packaging dairy - based drinks like milkshakes and smoothies. These products often have different viscosities and consistencies, but the machine can handle them well to provide a reliable packaging solution.
● Sauces and Condiments: Ketchup, mayonnaise, barbecue sauce, and other viscous condiments can be effectively packaged. The machine's ability to handle different viscosities allows for precise filling and sealing of these products. This helps to maintain the freshness and flavor of the condiments and prevents leakage during storage and transportation.
● Soups and Broths: It is ideal for packaging ready - to - eat soups and broths. Whether it's a creamy mushroom soup or a clear chicken broth, the packaging machine can accurately measure and package these liquid foods into individual pouches, making them convenient for consumers to use.
2. Cosmetics and Personal Care Products： The machine also finds extensive use in the cosmetics and personal care industry.
● Skincare Products: Liquid - based skincare products such as toners, essences, and serums can be packaged. These products are often delicate and require precise metering and careful handling during packaging. The horizontal pouch - feeding machine provides a gentle and accurate packaging process to ensure the integrity of the products and the correct dosage for consumers.
● Haircare Products: Shampoos, conditioners, and hair masks of different viscosities can be packaged. The machine can adjust to the specific requirements of each product to achieve efficient and accurate packaging. This is crucial for maintaining the quality and performance of the haircare products.
● Body Care Products: Lotions, body oils, and liquid soaps can be packaged using this machine. The reliable sealing mechanism ensures that these products do not leak and maintains their freshness and quality over time.
3. Pharmaceutical and Nutraceutical Applications： In the pharmaceutical and nutraceutical sectors, the machine plays an important role.
● Liquid Medications: It can package liquid drugs such as cough syrups, oral suspensions, and eye drops. The precise metering is essential for ensuring the correct dosage of medications, which is critical for patient safety. The hygienic design of the machine also meets the strict requirements of the pharmaceutical industry.
● Nutritional Supplements: Vitamins, herbal extracts, and other liquid - based nutritional supplements can be packaged. The machine helps to maintain the stability and potency of these products by providing a sealed and protected packaging environment.
4. Chemical and Household Chemicals：For chemical and household chemicals, the machine offers a practical packaging solution.
● Cleaning Agents: Liquid detergents, dishwashing liquids, and all - purpose cleaners can be packaged. The machine can handle different chemical formulations and viscosities to provide a consistent and reliable packaging process.
● Pesticides and Herbicides: In the agricultural and gardening sectors, it can package liquid pesticides and herbicides. The proper sealing and accurate metering are important to ensure the effectiveness and safety of these chemicals during storage and application.
Operation Tips: |
The operation of the machine is not done once and for all, and it is necessary to pay special attention to the state of the machine during each packaging process. In order to effectively manage and maintain the packaging machine and control the product quality, in addition to regular maintenance, the auxiliary personnel and feeding personnel of the equipment also need to follow the following operating procedures.
Product Operate Guide： |
● Turn on the power switch.
● Check whether the air pressure is sufficient (must reach the standard requirements).
● Click the host to start, and check whether each action is working properly.
● Check and clean up each box room.
● Put the bag, load the material, put the material box.
● Click the host to start.
● The product that is packaged in vacuum for the first time should be checked whether the seal is firm, whether the suction is tight and through the water check(Must check vacuum chamber 1-10).
● During the production process, check the product sealing and pumping conditions continuously.
● Every 2 hours after the machine runs, must be the top cover of the machine, bag clip, and funnel mouth, carried out with an air gun clean.
● The bag or material dropped on the machine, should be hooked out with a hook, do not take it by hand.
FAQ： |
Q: How can I know your machine is designed for my product?
A: You can Send us product samples and Have a test on our Machine
Q: Do you test all your goods before delivery?
A: Yes,we have 100% test before delivery,and if you need,we can record a video about the test process of machine to you.
Q: Do you have any technical supports?
A: Yes,we have a profeesional team of engineers who owned many installation,debug and trainning experiences abroad,are available to service machinery overseas.
Q: How can I know the machinery quality before shipping?

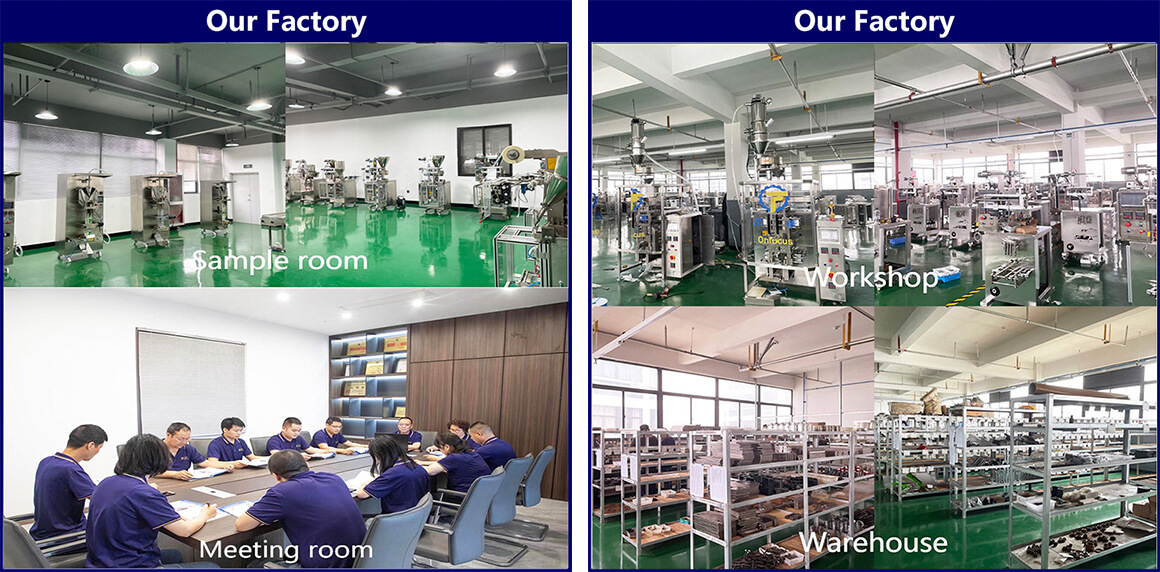

A: We will invite you visiting our factory to check the machines quality,and show the machine running to you in our factory.If you don't have time to vist we can record videos for you and try our best to meet your requirements.
Q: Does the date - printing equipment come with it?
A: Our machines can be equipped with automatic printers, but an additional price is required. Besides the conventional ribbon - type printer, we also have better - quality laser printers, which are more expensive. For pillow - type machines, our standard - equipped printer is an ink - wheel printer.
Q: Does your machine have the color - mark - tracking function?
A: Except for the AH-1000 model, which has no system and no color - mark function, all other roll - film machines have this function.
Q: What are the payment methods of your company?
A: we usually choose TT, with a 30% or 50% deposit, and the balance paid before shipment.All banking charges outside China are on buyers.
