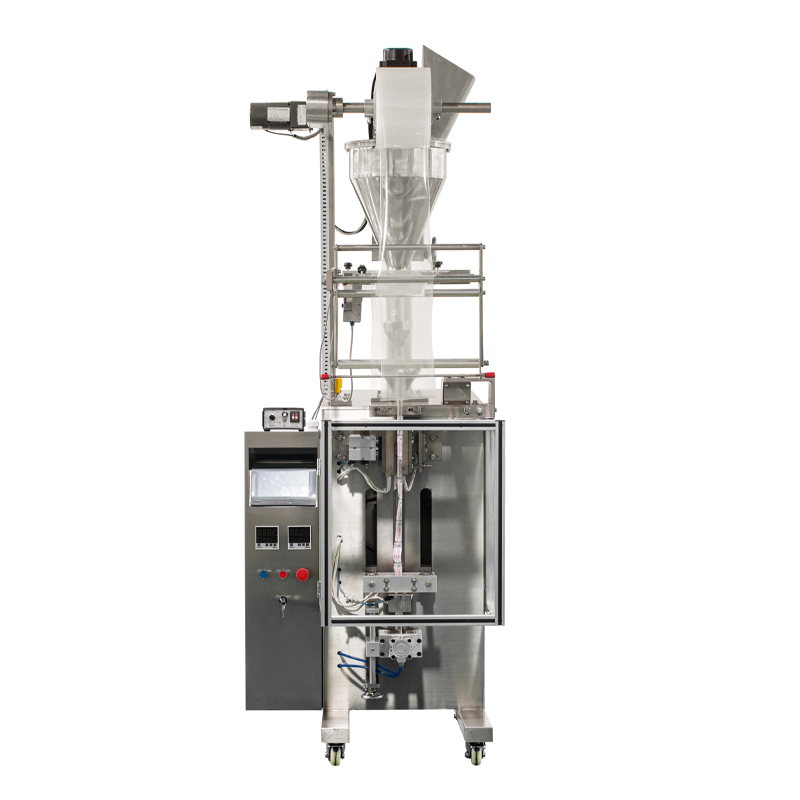

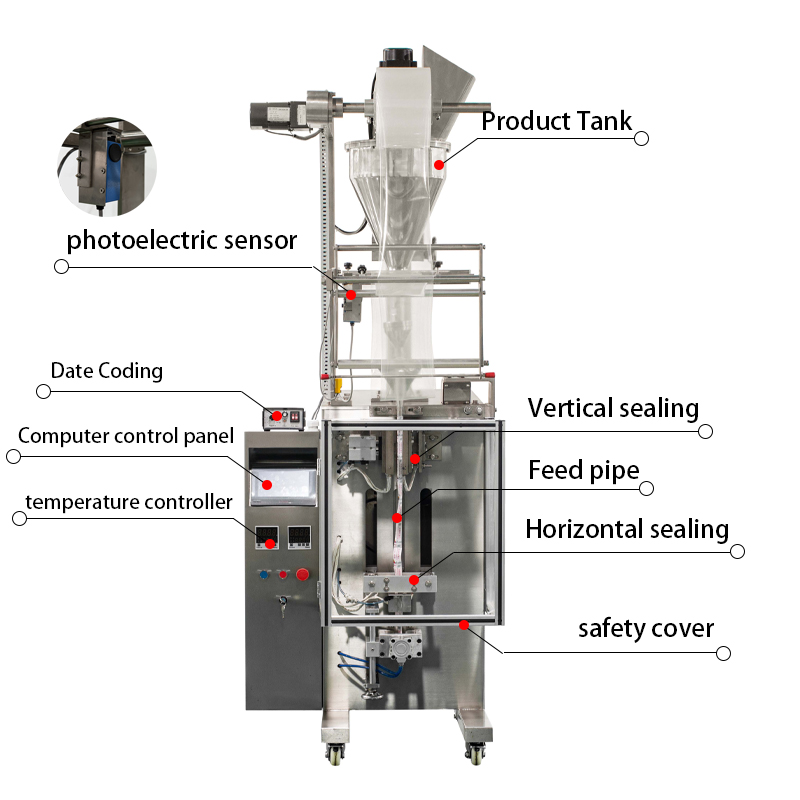

The Onfocus AH-FJQ240-WF Small Bag Vertical Powder Reciprocating Packing Machine is the advanced packaging solution we've specifically designed for your powdered products. Using a reciprocating working principle, we've integrated the entire process—from bag making and measuring to filling, sealing, and cutting—into a single, seamless workflow for you. Our machine is engineered to be exceptionally fast, with a packing speed of up to 40 bags per minute, and highly efficient, with a precise filling range of 20-250 ML. It also supports a wide variety of packaging materials, including Paper/PE, Nylon/PE, Foil/PE, Tea-leaf filtering paper, etc., and can create both three-side or four-side sealed bags. With simple operation and easy maintenance, we're here to provide you with a reliable system that guarantees your products are packaged with both precision and an attractive finish, helping your brand stand out in your market.
Product Advantage： |
● Fully Automated, All-in-One Process
This machine handles the entire packaging process for you, from forming the bag out of film roll to precise filling, secure sealing, and final cutting. It operates without manual intervention, which significantly increases your production efficiency and ensures every step is accurate and consistent.
● High-Speed Reciprocating Action
We've built this machine with an advanced reciprocating working principle, allowing it to run at a speed of up to 40 bags per minute. This design is perfect for small bag packaging, ensuring a stable and high-quality result even during high-speed production.

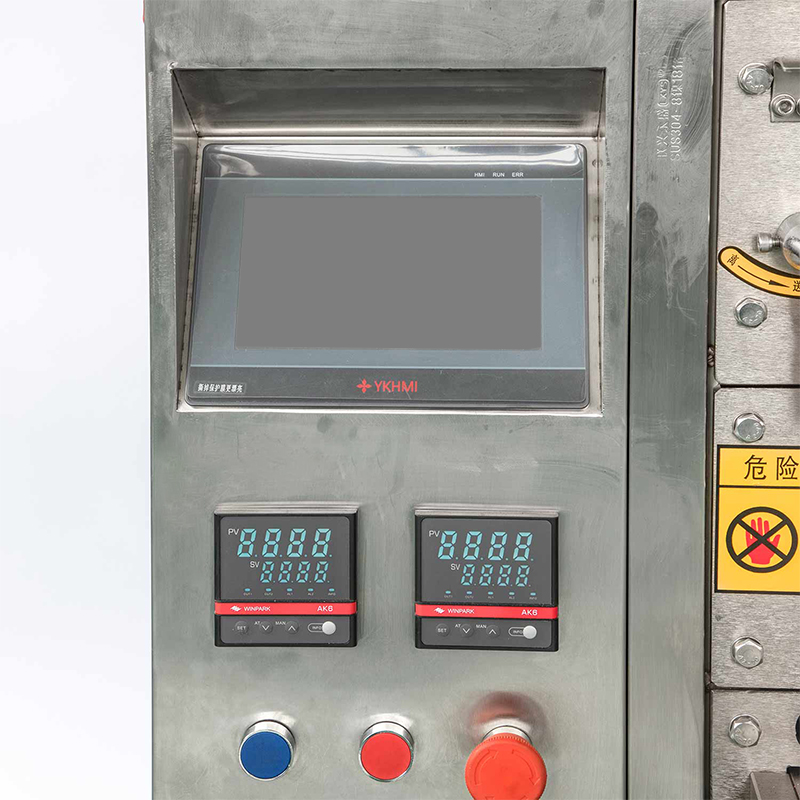

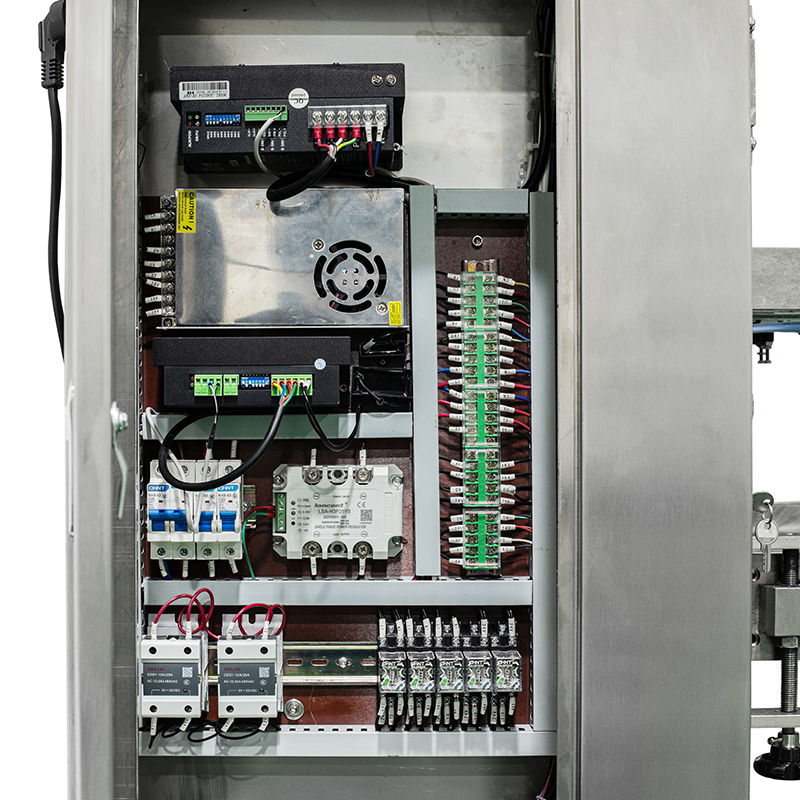

● Intelligent PLC Control System
At its core, the machine uses a powerful PLC control system to precisely manage every action. It includes automatic deviation correction to keep the packaging film perfectly aligned, an auto-counting function for easy production data management, and an auto-stop feature that protects the machine and your products in case of an issue.
● High-Precision Filling with Flexible Dosing
The machine's filling system is electronically controlled by a servo motor, enabling highly accurate dosing of powder. It has a filling range of 20-250ML, and you can easily fine-tune it based on your product's specific characteristics to minimize material waste.
● Wide Compatibility for Packaging Materials
Our machine can work with a variety of composite packaging materials, including common options like Paper/PE and Nylon/PE. This gives you greater flexibility when choosing your packaging design, allowing you to select materials that best fit your product and market demands.
● Customizable Bag Sizes
We understand that different products require different packaging. That's why the bag size of this machine can be customized to your specific needs, ensuring your product packaging is both professional and perfectly sized.
Technical Parameters： |
| Model | AH-FJQ-240 |
| Making bag size | Three sides, four sides:(L)30~160mm (W)25mm(min) |
| back seal:(L)30~200mm (W)20mm(min) | |
| Packing Speed | 0-40 packets/min |
| Filling Range | 20-250ML |
| Maximum film width | <240MM |
| Heat seal power | 1600W (four-sided seal 2200w) |
| Power Supply | 220V 50HZ |
| Measuring accuracy | ≤±1.2% |
| Packing material | Paper/PE, PET/AL, Foil/PE Nylon/PE, Tea-leaf filtering paper, etc. |
| Weight | 290KG |
| Dimension | 770*1100*1820MM |
| (Packing in wooden case) | |
| note | A die is provided by default |
Product Uses： |
1. Beverage and food industry
Coffee powder: such as instant coffee powder, coffee companion powder, coffee bean grinding powder, etc.
Beverage powder: such as milk tea powder, juice powder, protein powder, etc.
Condiment powder: such as chicken essence, MSG, chili powder, etc.
Candy powder: such as chewing gum powder, candy powder, chocolate powder, etc.
Flour: such as wheat flour, corn flour, glutinous rice flour, etc.
2. Chemical industry
Pigment powder: such as titanium dioxide, carbon black powder, iron oxide powder, etc.
Plastic powder: such as polyethylene powder, polypropylene powder, polyvinyl chloride powder, etc.
Detergent powder: such as washing powder, dishwashing powder, hand sanitizer powder, etc.
Fertilizer powder: such as urea, diammonium phosphate, ammonium sulfate, etc.
Metal powder: such as aluminum powder, copper powder, zinc powder, etc.
3. Pharmaceutical industry
Chinese medicine powder: such as coptis powder, isatis root powder, forsythia powder, etc.
Western medicine powder: such as cephalosporin, aspirin, vitamin C, etc.
Health powder: such as protein powder, enzyme powder, dietary fiber powder, etc.
Product Operate Guide： |
● Turn on the power switch.
● Check whether the air pressure is sufficient (must reach the standard requirements).
● Click the host to start, and check whether each action is working properly.
● Check and clean up each box room.
● Put the bag, load the material, put the material box.
● Click the host to start.
● The product that is packaged in vacuum for the first time should be checked whether the seal is firm, whether the suction is tight and through the water check(Must check vacuum chamber 1-10).
● During the production process, check the product sealing and pumping conditions continuously.
● Every 2 hours after the machine runs, must be the top cover of the machine, bag clip, and funnel mouth, carried out with an air gun clean.
● The bag or material dropped on the machine, should be hooked out with a hook, do not take it by hand.
FAQ： |
Q: How can I know your machine is designed for my product?
A: You can Send us product samples and Have a test on our Machine
Q: Do you test all your goods before delivery?
A: Yes,we have 100% test before delivery,and if you need,we can record a video about the test process of machine to you.
Q: Do you have any technical supports?
A: Yes,we have a profeesional team of engineers who owned many installation,debug and trainning experiences abroad,are available to service machinery overseas.
Q: How can I know the machinery quality before shipping?
A: We will invite you visiting our factory to check the machines quality,and show the machine running to you in our factory.If you don't have time to vist we can record videos for you and try our best to meet your requirements.
