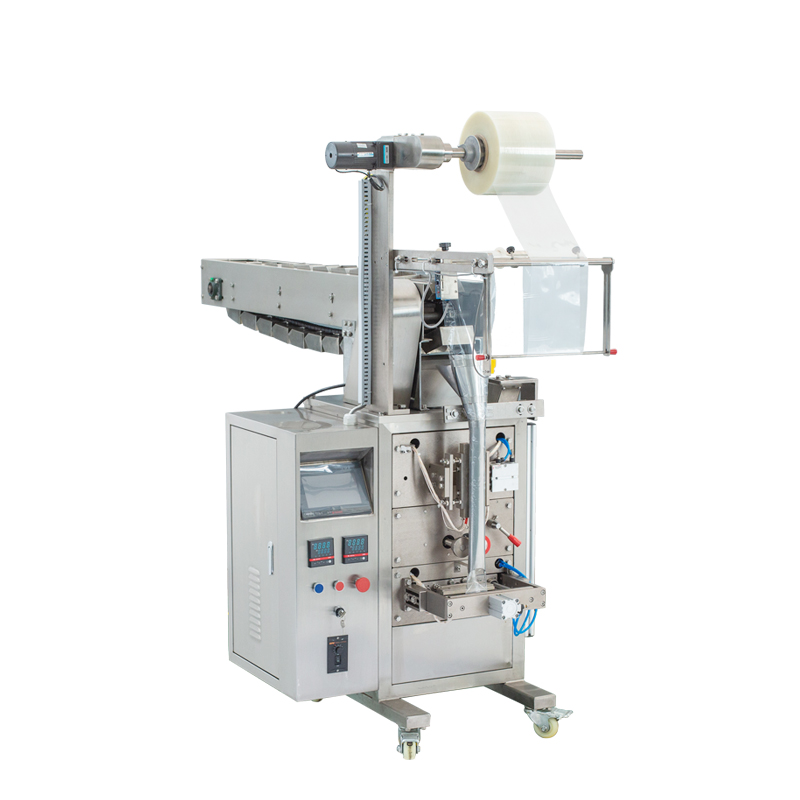

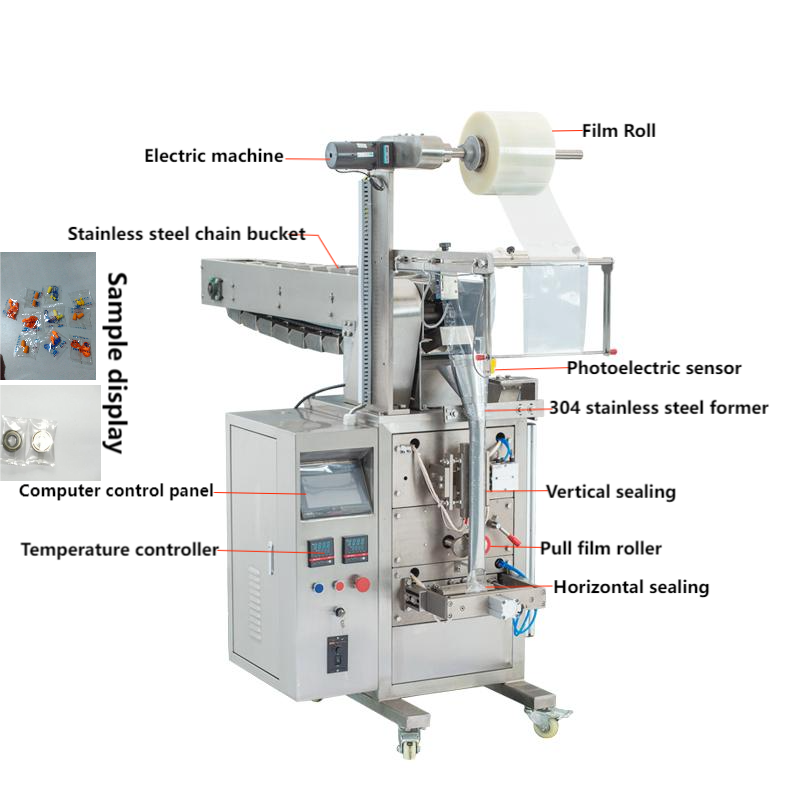

The Onfocus AH-LDQ-240 Small Bag Vertical Bucket Chain Packing Machine is our specialized automated packaging solution for fragile, irregular, or delicate products. This machine features a unique bucket chain feeding system that gently and precisely transports your materials to the packaging point. It effectively prevents the impact and damage that can occur with a traditional gravity-fed system. We've integrated automatic bag-making, metering, filling, and sealing functions to ensure a highly efficient and stable production process for you. With a packing speed of up to 45 bags per minute and a precise filling range of 2-50g, our machine easily handles a variety of small bag packaging needs. The bag sizes are flexible, and it can produce various seal types, including three-side, four-side, and back seals. Thanks to its high efficiency, stability, and gentle material handling, this machine is the ideal choice for boosting your product quality and production efficiency.
Product Advantage： |
● Maintains Product Integrity
For fragile or irregular products like potato chips, candies, or cookies, the chain bucket system gently carries and delivers the product to the packaging point, significantly reducing impact and damage. For mixed or chunky materials, the chain bucket system better preserves the shape and proportions of the product. This prevents separation or clumping caused by the impact of a free-fall drop, ensuring consistent contents in every bag.
● Independent Metering Units

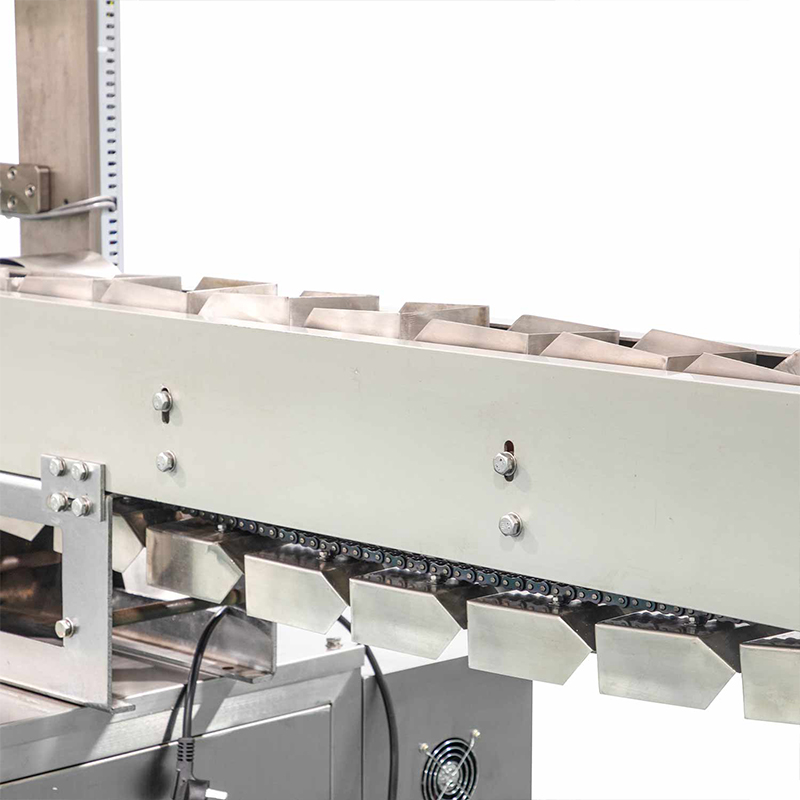

Each bucket on the chain serves as an independent measuring unit. The material is pre-weighed or measured in the bucket before being delivered to the packaging station. This pre-dosing method is more stable and accurate than the real-time filling, which can fluctuate with changes in material flow.
● Compatible with Various Dosing Systems
The chain buckets can work seamlessly with a range of weighing or metering devices, such as multihead weighers or volumetric cups. This flexibility allows the machine to precisely handle diverse materials, from uniform granules to irregular chunks, with high accuracy.
● Handles Irregular Products
A standard vertical machine can struggle with irregular, large, or easily tangled materials, leading to jams. The chain bucket system conveys these materials smoothly, making it an ideal choice for packaging non-food items like hardware, screws, or plastic parts.
● Reduces Dust Contamination
For products with fine dust, the chain bucket's contained transport method is cleaner than a free-fall system. This helps to suppress dust and maintain a cleaner working environment.
Technical Parameters： |
| Model | AH-LDQ-240 |
| Making bag size | Three sides, four sides:(L)30~160mm (W)25mm(min) |
| back seal:(L)30~200mm (W)20mm(min) | |
| Packing Speed | 0~45packets/min |
| Filling Range | 2-50g |
| Maximum film width | <240MM |
| Heat seal power | 2100W (four-sided seal 2700w) |
| Power Supply | 220V 50HZ |
| Measuring accuracy | ≤±1.2% |
| Packing material | Paper/PE, PET/AL, Foil/PE Nylon/PE, Tea-leaf filtering paper, etc. |
| Weight | 270KG |
| Dimension | 770*1100*1820MM |
| (Packing in wooden case) |
Product Uses： |
1. Beverage and food industry
Cookies, pastries, cakes and other baked goods; Candy, chocolate, chewing gum and other small food; Coffee, tea, scented tea and other drinks; Dried fruit, puffed food, nuts and other snacks; Condiments, sauces, powders and other condiments; Frozen food, frozen food and other frozen food; Meat, seafood, vegetables and other fresh food.
2. Machinery industry
Hardware tools, electronic components, electrical accessories and other small items; Mechanical parts, auto parts, motorcycle parts and other small and medium-sized mechanical parts; Metal products, plastic products, rubber products and other small and medium-sized industrial products.
3. Pharmaceutical industry
Solids, powders, granules, tablets, capsules, pills, etc. For example, vitamins, tablets, Chinese medicine particles, oral liquid bags, medical cotton swabs, medical masks, etc.
Product Operate Guide： |
● Turn on the power switch.
● Check whether the air pressure is sufficient (must reach the standard requirements).
● Click the host to start, and check whether each action is working properly.
● Check and clean up each box room.
● Put the bag, load the material, put the material box.
● Click the host to start.
● The product that is packaged in vacuum for the first time should be checked whether the seal is firm, whether the suction is tight and through the water check(Must check vacuum chamber 1-10).
● During the production process, check the product sealing and pumping conditions continuously.
● Every 2 hours after the machine runs, must be the top cover of the machine, bag clip, and funnel mouth, carried out with an air gun clean.
● The bag or material dropped on the machine, should be hooked out with a hook, do not take it by hand.
FAQ： |
Q: How can I know your machine is designed for my product?
A: You can Send us product samples and Have a test on our Machine
Q: Do you test all your goods before delivery?
A: Yes,we have 100% test before delivery,and if you need,we can record a video about the test process of machine to you.
Q: Do you have any technical supports?
A: Yes,we have a profeesional team of engineers who owned many installation,debug and trainning experiences abroad,are available to service machinery overseas.
Q: How can I know the machinery quality before shipping?
A: We will invite you visiting our factory to check the machines quality,and show the machine running to you in our factory.If you don't have time to vist we can record videos for you and try our best to meet your requirements.
