| Quantity: | |
|---|---|
Product Advantage： |
One machine with two function, One machine meets printing and sealing.
● Space - saving Design

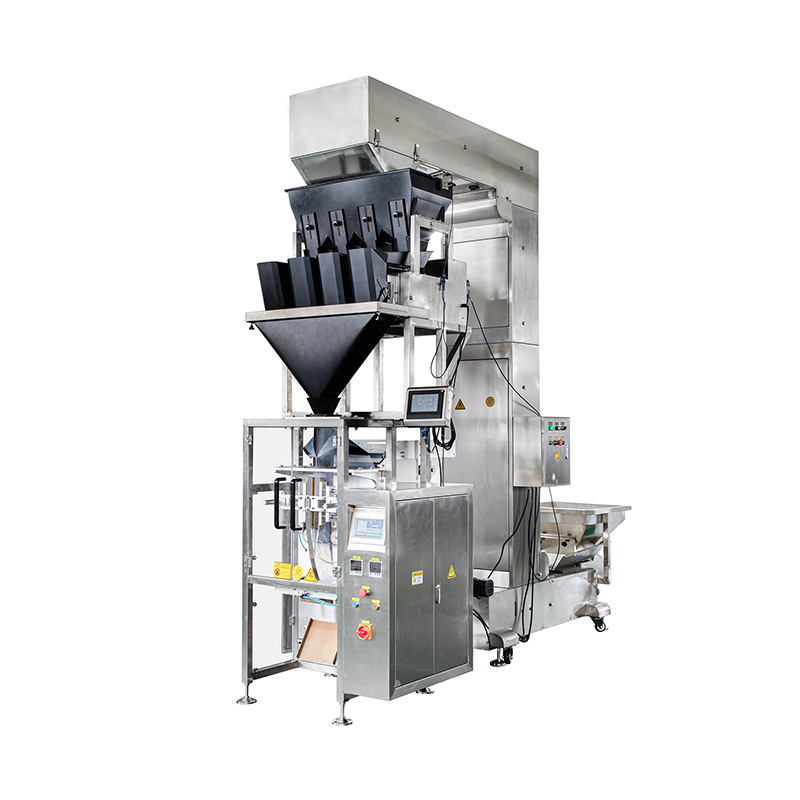

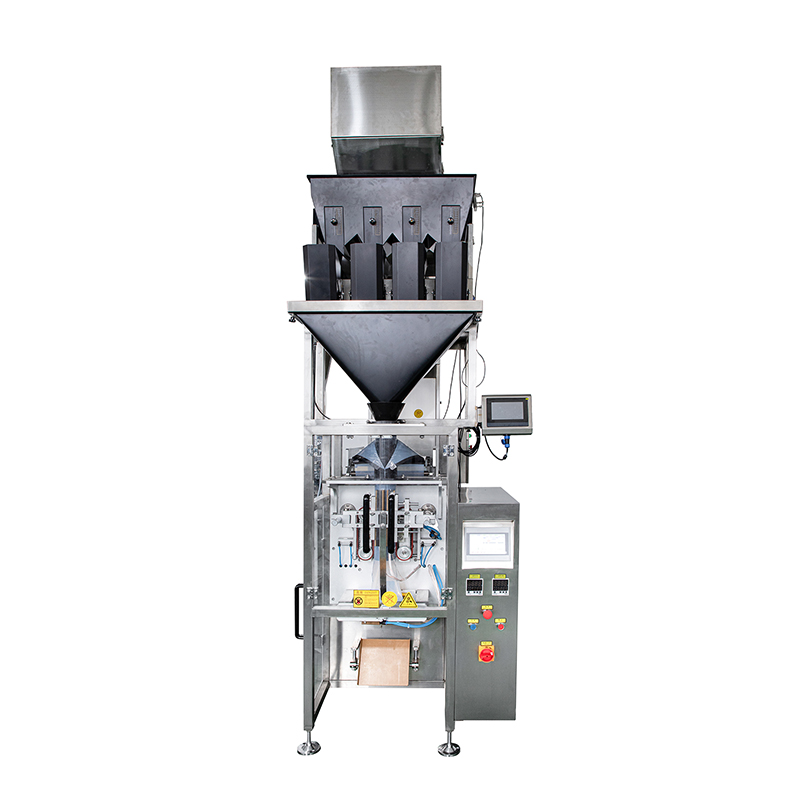

Large - scale vertical packaging machines, with their vertical orientation, take up less floor space than horizontal ones of similar capacity. This benefits factories or production facilities short on space. For example, in a small - to - medium - sized pet food plant, a vertical packaging machine can be placed in a corner, minimizing the area it occupies and leaving more room for other equipment such as mixers and conveyors.
● Efficient Packaging Process

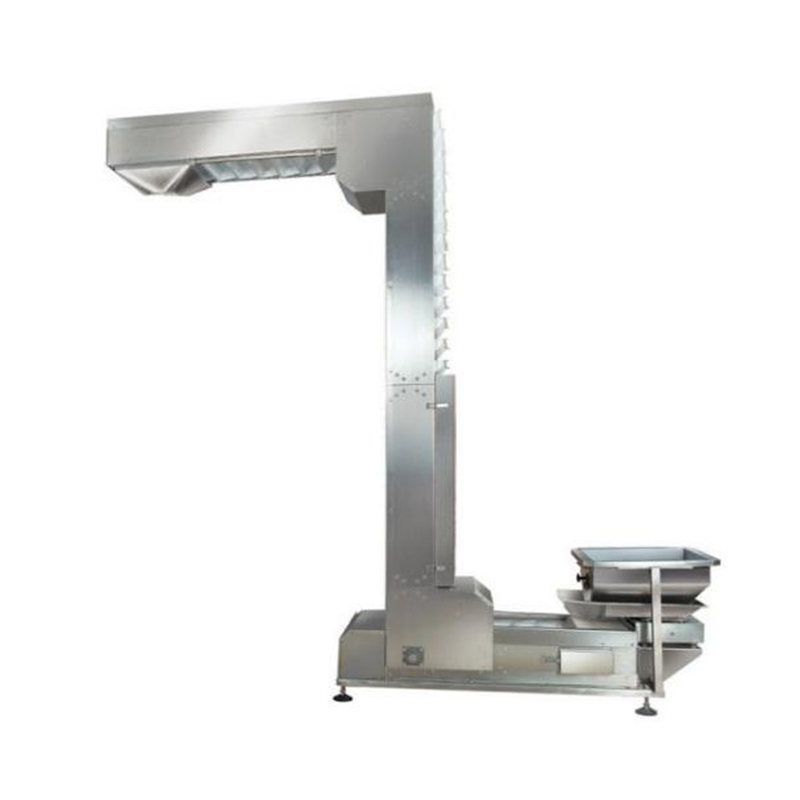

Automatic feeding system: The automatic feeder ensures a continuous product supply, reducing manual labor and production disruptions. In grain packaging, for example, it controls the amount of grains entering the packaging area, guaranteeing consistent weights.
● Versatility in Packaging Types
● Accurate Packaging Measurements
● Enhanced Product Protection
Technical Parameters： |
| Model | AH-DBZ350 | AH-DBZ450 | AH-DBZ620 | AH-DBZ820 |
| Making bag size | (L)30-280mm | (L)30-280mm | (L)50-400mm | (L)50-400mm |
| (W)40-160mm | (W)40-210mm | (W)100-300mm | (W)100-400mm | |
| Packing Speed | 0-45bags/min | 0-45bags/min | 0-30bags/min | 0-30bags/min |
| Power Supply | 220V 50HZ | 220V 50HZ | 220V 50HZ | 220V 50HZ |
| Measuring accuracy | ≤±1% | |||
| Packing material | OPP、PE、PVC、OPP/PE、PET/VMPET/PE | |||
| Compressed air consumption | 6KG/m³ | |||
| Air consumption | 0.3m³/min | |||
| Roll film size | Outer diameter D≤300mm, Inner diameter D=74mm | |||
| Weight | 355 | 370 | 430 | 500 |
| Dimension | 1320x1070x1600mm | 1320x1170x1600mm | 1450x1280x1900mm | 1550x1500x2050mm |
| (The main unit part) | ||||

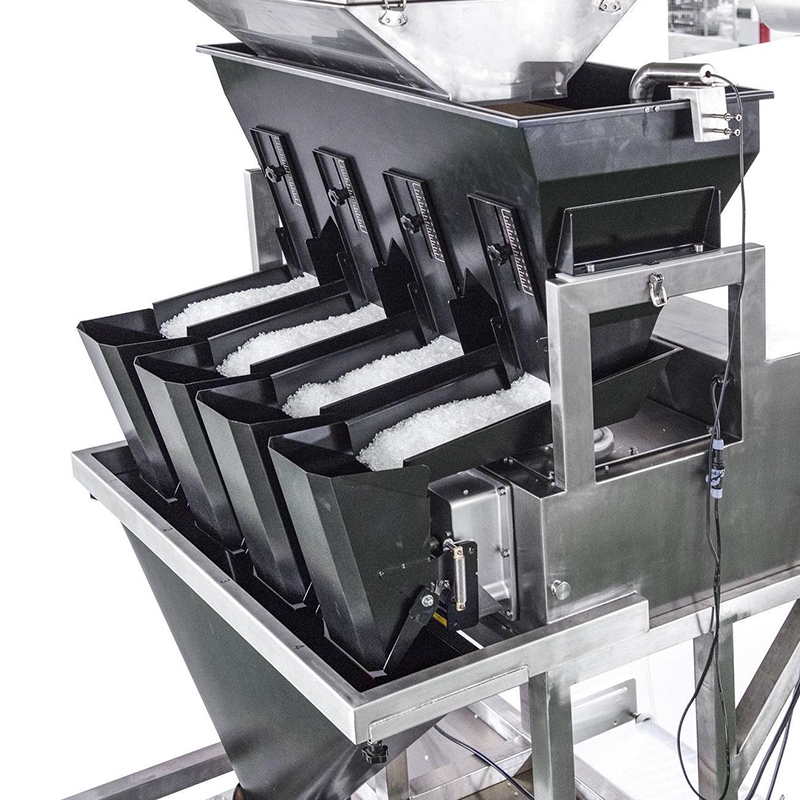

| weighing section | Computer combined weighingequipment |
| Weighing range | 10-2000g |
| The average error of single bag | 0.2-0.5g |
| Weighing precision range | 0.1-1.5g |
| The biggest weighing speed | 30-130 bags/min |
| Hopper capacity | 1300m³ |
| Hopper type | Double row memoryless bucket |
| Drive mode | Stepper motor |
| Power | 2000W |
| Power source | 220V, 50/60HZ |
| Dimensions | 1250*1020*1348mm |
Product Uses： |
Operation Tips: |
Machine operation isn't a one - time deal. Special attention must be paid to its state during each packaging cycle. To manage and maintain the packaging machine effectively and ensure product quality, apart from regular servicing, auxiliary and feeding staff should follow these operating procedures.
Product Operate Guide： |
● Turn on the power switch.
● Check whether the air pressure is sufficient (must reach the standard requirements).
● Click the host to start, and check whether each action is working properly.
● Check and clean up each box room.
● Put the bag, load the material, put the material box.
● Click the host to start.
● The product that is packaged in vacuum for the first time should be checked whether the seal is firm, whether the suction is tight and through the water check(Must check vacuum chamber 1-10).
● During the production process, check the product sealing and pumping conditions continuously.
● Every 2 hours after the machine runs, must be the top cover of the machine, bag clip, and funnel mouth, carried out with an air gun clean.
● The bag or material dropped on the machine, should be hooked out with a hook, do not take it by hand.
FAQ： |
Q: How can I know your machine is designed for my product?
A: You can Send us product samples and Have a test on our Machine
Q: Do you have any technical supports?
A: Yes,we have a profeesional team of engineers who owned many installation,debug and trainning experiences abroad,are available to service machinery overseas.
Q: How can I know the machinery quality before shipping?
A: We will invite you visiting our factory to check the machines quality,and show the machine running to you in our factory.If you don't have time to vist we can record videos for you and try our best to meet your requirements.
Q: What are the payment methods of your company?
A: we usually choose TT, with a 30% or 50% deposit, and the balance paid before shipment.All banking charges outside China are on buyers.
